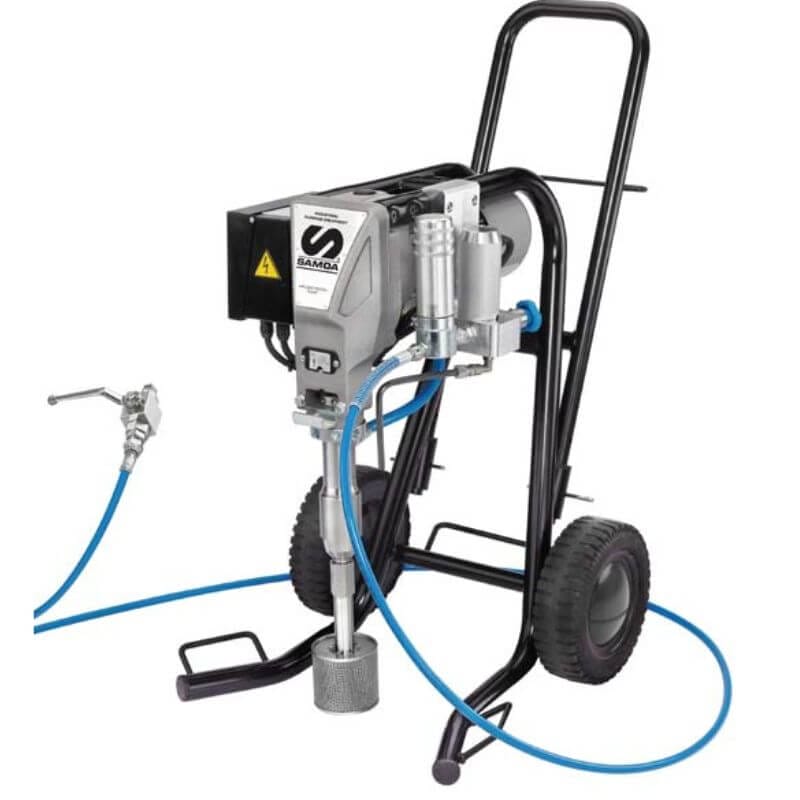

ZEUS – Electric airless piston injection pump

The Zeus injection pump designed to reach efficient interventions in the most common cold injections applications of heat-sensitive expanding resins or sealants, for restoration and consolidation.

It is recommended for the injection of high viscosity resins.

Advantages

  • Constant pressure during the injection process
  • Efficient material suction
  • Regular product delivery
  • Easy to use and less maintenance
Request quote
Compare product Categories: , Tags:
Subscribe to newsletter

Additional information

Consigli utilizzo

Iniezione di resine e sigillanti con un alto grado di viscosità
Version

On trolley
Models

ENG 1001 con preriscaldatori, ENG 1002
Mixing ratio

1:1
Max. supply pressure

7 bar
Max. delivery

12 l/min per pompante, 24 l/min
Max. working pressure

70 bar
Max. cycles /min

60
Injection resins pumps catalogue
  • Underground boxes
  • Cellars
  • Pit lifts
  • Galleries and tunnels
  • Hanging gardens
  • Joint between masonry and foundations
  • Joint between mansory and slab
  • Pre-slabs
  • Ground walls
  • Filling cracks and crevices
  • Riprese di getto
  • Soil stabilization
  • Sealing gels
  • Acrylic resins
  • Epoxy resins
  • Waterproofing hydro expansive resins
  • Polyurethane resins
  • Silicatic resins
  • Silicone resins
  • Structural resins
  • Hose Ø 3/16″ – M16X1.5 inlet swivel – 5 m – Max. pressure 220 bar Code LA6164
  • Complete tap Code LA33040
  • Ball valve 3/8″ – M10X1 outlet Code LA3034
  • Inlet swivel 3/8″ BSPP (M) – M10X1 Code LA21570
  • Complete 6 l gravity tank Code LA35101
  • High pressure gauge M16X1.5 – 0-400 bar Code LA147
  • Heater Code LA6099
