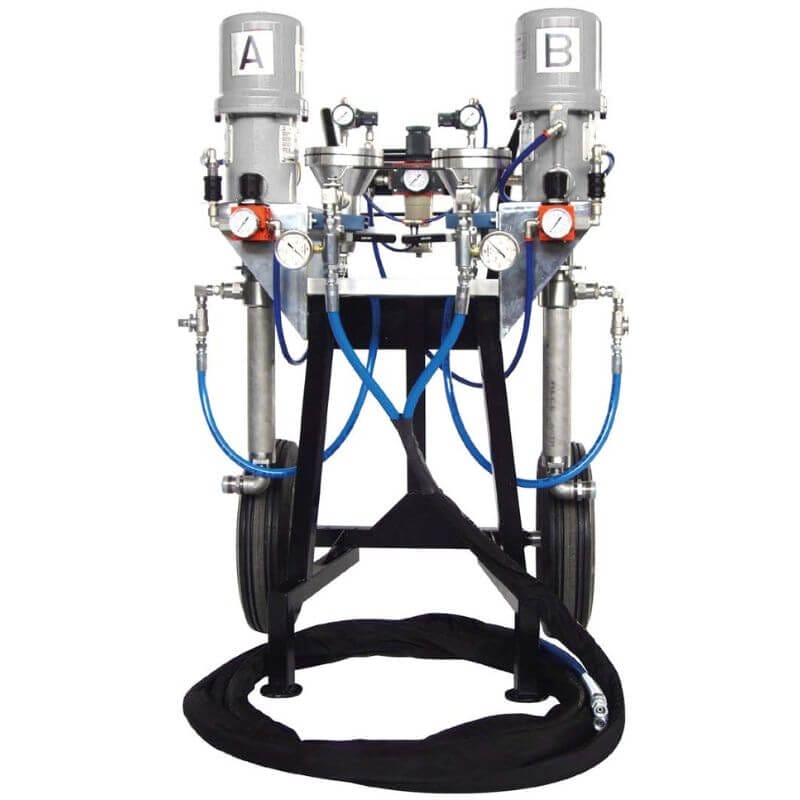

The 2K GHIBLI 10:1 application system, for the injection of two-component resins at a fixed ratio of 1:1, is designed for professional, rapid and efficient interventions in restoration and consolidation applications.

This type of injection equipment is recommended for the injection of high volumes of 2K resins with a high viscosity and with very fast chemical reactions.

Advantages

  • Regular pressure during the injection process
  • Large passage of materials – High flow rate
  • Efficient suction and constant material flow
  • Ease of use and simple maintenance



Additional information

Consiglio utilizzo

Iniezione di alti volumi di resine e di sigillanti bicomponenti ad alta viscosità e con reazioni chimiche molto veloci.

Version

Carrello

Models

ENG 1001 con preriscaldatori, ENG 1002

Mixing ratio

1:1

Max. supply pressure

7 bar

Max. delivery

12 l/min per pompante, 24 l/min

Max. working pressure

70 bar

Max. cycles /min

60

  • Underground boxes
  • Cellars
  • Pit lifts
  • Galleries and tunnels
  • Hanging gardens
  • Joint between masonry and foundations
  • Joint between mansory and slab
  • Pre-slabs
  • Ground walls
  • Filling cracks and crevices
  • Riprese di getto
  • Soil stabilization
  • Sealing gels
  • Acrylic resins
  • Epoxy resins
  • Waterproofing hydro expansive resins
  • Polyurethane resins
  • Silicatic resins
  • Silicone resins
  • Structural resins
  • Automatic flow regulator for mastics 10-250 bar Code LA7130
  • FR regulator 3/8″ Code LA91107
  • Airless hose Ø 3/8″ M16X1,5 – 7,5 m Code LA18063
  • Stainless steel hose for viscous products Code LA16612 (ENG.1002)
  • Complete return stainless steel hose 1,5 m Code LA98056 (ENG 1002)
  • Pressure gauge 3/8″ fitting 0-60 bar Code LA150/2
  • Air group 1″ Code LA24483
  • 2K stainless steel gun Code LA18756
  • Plastic static mixer 3/8″- 13,77 cm Code LA23327
  • Heater Code LA6099 (ENG 1001)
