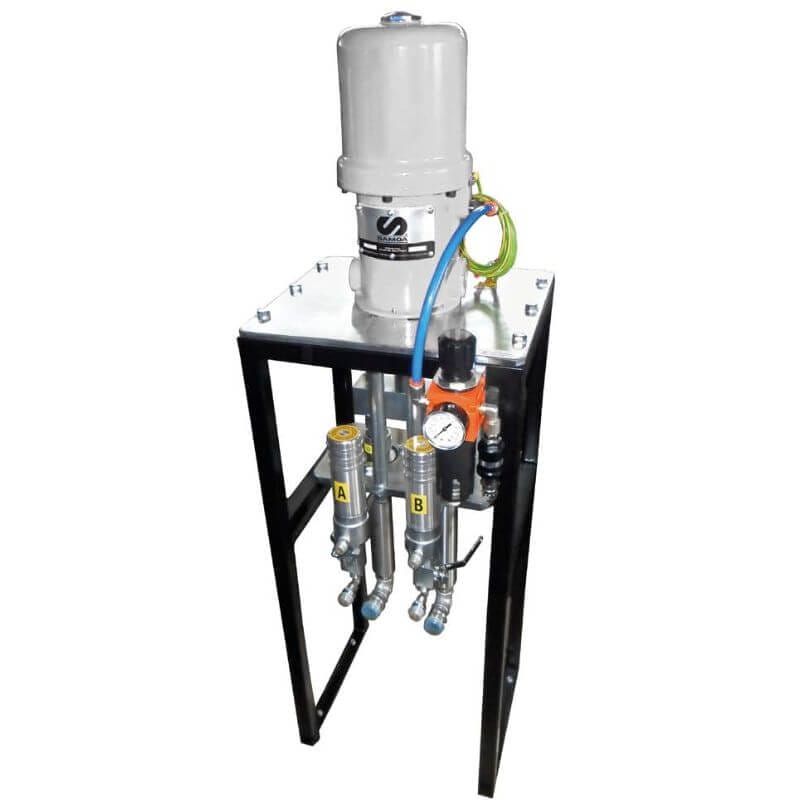

The 2K GHIBLI 15:1 application system, for the injection of two-component resins at a fixed ratio of 1:1, is designed for professional, rapid and efficient interventions in restoration and consolidation applications.

This type of injection equipment is recommended for the injection of high volumes of 2K resins with a high viscosity and with very fast chemical reactions.

Advantages

  • Regular pressure during the injection process
  • Large passage of materials – High flow rate
  • Efficient suction and constant material flow
  • Ease of use and simple maintenance
Request quote
Compare product Categories: , Tags:

Additional information

Consiglio utilizzo

Iniezione di alti volumi di resine e di sigillanti bicomponenti ad alta viscosità e con reazioni chimiche molto veloci.
Version

Carrello
Models

ENG 1008
Mixing ratio

1:1
Max. supply pressure

7 bar
Max. delivery

4 l/min per pompante, 8 l/min
Max. working pressure

105 bar
Max. cycles /min

60
Injection resins pumps catalogue
  • Underground boxes
  • Cellars
  • Pit lifts
  • Galleries and tunnels
  • Hanging gardens
  • Joint between masonry and foundations
  • Joint between mansory and slab
  • Pre-slabs
  • Ground walls
  • Filling cracks and crevices
  • Riprese di getto
  • Soil stabilization
  • Sealing gels
  • Acrylic resins
  • Epoxy resins
  • Waterproofing hydro expansive resins
  • Polyurethane resins
  • Silicatic resins
  • Silicone resins
  • Structural resins
  • Ghibli 30:1 air operated motor Code LA96550
  • Pneumatic regulation group Code LA96250
  • Ghibli 30:1 pump lower Code LA96070
  • Line filter M16X1.5 Code LA96220
  • Suction system for viscous products Code LA16610
  • 2K stainless steel gun Code LA18756
  • Plastic static mixer 3/8″- 13,77 cm Code LA23327
