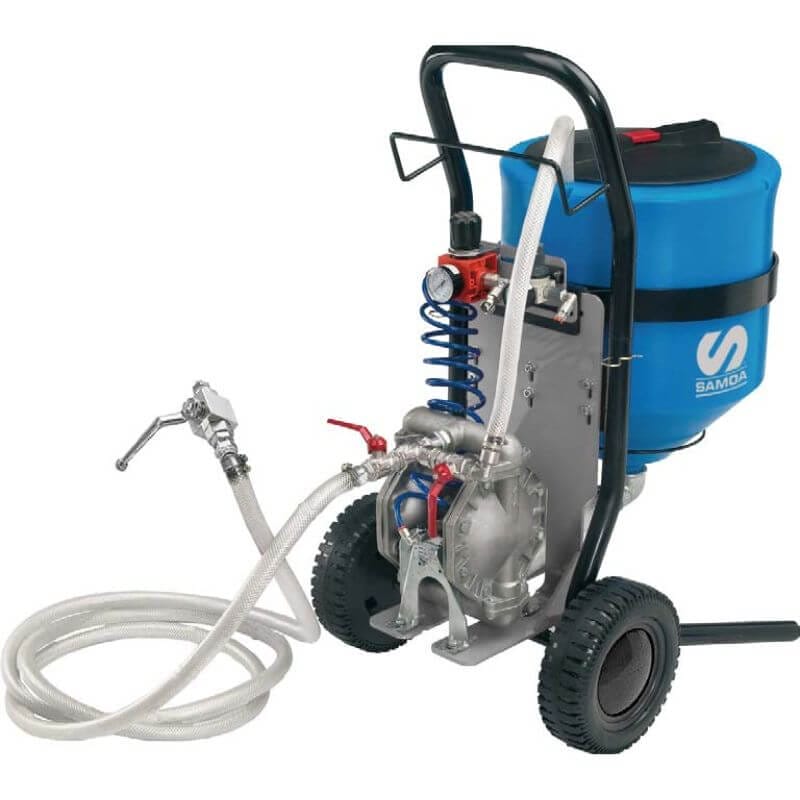

The Minipegaso air operated injection pump designed to reach efficient interventions in the most common cold injections applications of heat-sensitive expanding resins or sealants, for restoration and consolidation.
It is recommended for the injection of medium-high volumes of low viscosity resins that are sensitive to pressure action.
The Minipegaso low pressure injection equipment is easy to handle and the 50 l gravity tank allows the constant flow of viscous materials into the pump; the injection hose, complete with the tap, ensures an excellent maneuverability and an uniform product output.
Advantages
| Consiglio utilizzo | Iniezione di volumi medio-alti di resine e di sigillanti con un basso grado di viscosità e sensibili alle sollecitazioni della pressione. |
|---|---|
| Version | Trolley |
| Max. delivery | 40 l/min |
| Max. fluid pressure | 7 bar |
| Max. air pressure | 7 bar |
| Voltage | Compressed air |
| Sound pressure level | ≤ 50 dB (A) |
| Max. hose length | 30 m |
| Weight | 47 Kg on trolley |
