Larius is expert in high pressure industrial spray technology equipment for demanding protective coating airless application.

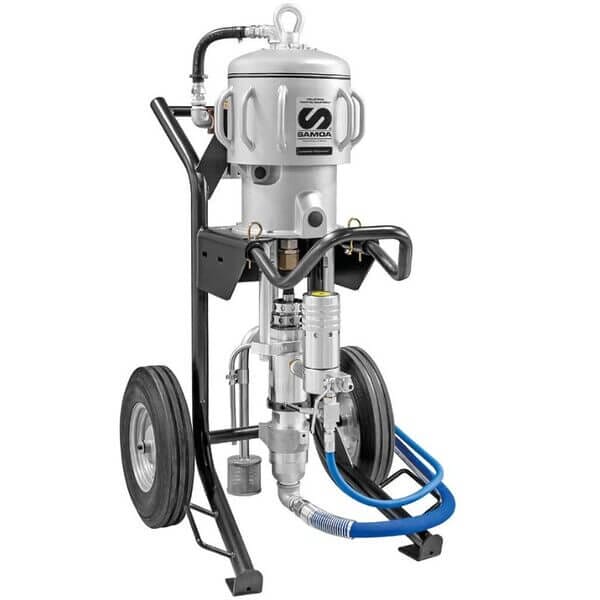

The Super Nova 45:1 is an high pressure pneumatic spray package, robust and resistant, for industrial painting and protective coating sector that allow the use of a wide range of medium-solid products to dispensed in total efficiency thanks to the  perfect coverage of airless atomisation for finishing large surfaces in a shorter time.

This airless anticorrosion spray unit, Atex certified, thanks to the quality of its construction materials, ensures the absence of pressure drop during the spraying application, a thick and uniform finish and a reduce of overspray.

Leggi di più

Request quote
Compare product Categories: , Tags:

Additional information

Version

Carrello
Material

Acciaio inox – Raccordo BSPP / Acciaio galvanizzato – Raccordo BSPP / Acciaio inox HD – Raccordo NPSM / Acciaio al carbone HD – Raccordo NPSM /
Max. delivery

14 l/min
Max. air pressure

7 bar
Max. fluid outlet pressure

315 bar
Air supply inlet

1″ BSPP (F)
Material inelt

1″ NPSM (M)
Fluid outlet

3/8″ NPSM (M)
Effective motor diameter

10″ – 254 mm
Piston stroke

4 3/4″ – 120 mm
Delivery per cycle

230 cc
Max. delivery at 60 cycles / min

1,3 l/min
Seals material

PTFE + Polietilene
Sound pressure level

<90 dB (A)
Weight

112 Kg
Pneumatic airless pumps catalogue
  • General industrial finishing
  • Woodworking and finishing
  • Marine & Off-shore
  • Oil & Gas
  • Metal products and machinery
  • Metal and steel protection
  • Plastic finishing
  • Anti-rust
  • Fixatives
  • Base coat
  • Fireproof
  • Intumescents
  • Lacquers
  • Mordants
  • Primer
  • Water / Solvent based products
  • Single or double components protective coating
  • Epoxy resins
  • Vinyl coating
  • Enamels
  • Topcoat
  • Catalysed paints
  • L91X airless manual spray gun + nozzle holder base – fitting 1/4″ BSPP (M) – nozzle not included Code LA11131
  • L91X airless manual spray gun + nozzle holder base – fitting 1/4″ NPSM (M) – nozzle not included CodeLA11134
  • L91X airless manual spray gun – fitting 1/4″ BSPP (M) – nozzle holder base and nozzle not included Code LA11133
  • L91X airless manual spray gun – fitting 1/4″ NPSM (M) –  nozzle holder base and nozzle not included Code LA11137
  • L91X repair kit Code LA40280
  • Turbo spray gun airless assisted airless – nozzles 4-6-8-10 mm – hose 15 m – airless nozzle SFC 51-40 Code LA20780
  • Spray airless gun butt filters 200 mesh – 25 units  Code LA11019/25
  • Spray airless gun butt filters 100 mesh – 25 units  Code LA11037/25
  • Spray airless gun butt filters 60 mesh – 25 units    Code LA11038/25
  • Spray airless gun butt filters 30 mesh – 25 units    Code LA11039/25
  • PLA pole airless spray gun fitting 1/4″ BSPP (M) – Max. pressure 250 bar – 130 cm Code LAK11420
  • PLA pole airless spray gun fitting 1/4″ BSPP (M) – Max. pressure 250 bar – 180 cm Code LAK11425
  • PLA pole airless spray gun fitting 1/4″ BSPP (M) – Max. pressure 250 bar – 240 cm Code LAK11430
  • PLA pole airless spray gun fitting 1/4″ BSPP (M) – Max. pressure 450 bar – 130 cm Code LAK11436
  • PLA pole airless spray gun fitting 1/4″ BSPP (M) – Max. pressure 450 bar – 180 cm Code LAK11441
  • PLA pole airless spray gun fitting 1/4″ BSPP(M) – Max. pressure 450 bar – 240 cm  Code LAK11446
  • Manual airless gun extension 30 cm   Code LA153
  • Manual airless gun extension 40 cm   Code LA154
  • Manual airless gun extension 60 cm   Code LA155
  • Manual airless gun extension 80 cm   Code LA158
  • Manual airless gun extension 100 cm Code LA156
  • Super Fast Clean airless nozzles. Sizes from 11-20 to 51-80 Code LASFC
  • Top Spraying Clean airless nozzle. Sizes from 7-10 to 31-60 Code LATSC
  • Standard airless nozzles. Sizes from 7-20 a 51-80
  • Larex airless hose Ø 3/8″ fitting M16X1,5 – 5 m – Max. pressure 425 bar  Code LA18063
  • Larex airless hose Ø 3/8″ fitting M16X1,5 – 7,5 m – Max. pressure 425 bar Code LA18064
  • Larex airless hose Ø 3/8″ fitting M16X1,5 – 10 m – Max. pressure 425 bar  Code LA18065
  • Airless antipulsation hose Ø 1/4″ fitting 1/4″ BSPP – 7,5 m – Max. pressure 700 bar Code LAHSU25251
  • Airless antipulsation hose Ø 1/4″ fitting 1/4″ BSPP – 10 m – Max. pressure 700 bar Code LAHSU25301
  • Airless antipulsation hose Ø 1/4″ fitting 1/4″ BSPP – 15 m – Max. pressure 700 bar Code LAHSU25501
  • Stainless steel airless hose Ø 1/4″ fitting 1/4″ NPSM – 1,5 m – Max. pressure 700 bar Code LAHSU25054
  • Airless hose Ø 1/4″ fitting 1/4″ NPSM – 5 m – Max. pressure 700 bar Code LAHSU25153
  • Airless antipulsation hose Ø 3/8″ raccordato 3/8″ NPSM – 7,5 m – Max. pressure 700 bar  Code LAHSU38253
  • Airless antipulsation hose Ø 3/8″ raccordato 3/8″ NPSM – 10 m – Max. pressure 700 bar  Code LAHSU38303
  • Airless antipulsation hose Ø 3/8″ raccordato 3/8″ NPSM – 15 m – Max. pressure 700 bar  Code AHSU38503
  • Line filter 3/8″ NPSM Code LA95200/1
  • Stainless steel line filter – 3/8″ NPSM Code LA98300/1
  • Line filter M16X1,5 (M) Code LA95200
  • Stainless steel line filter M16X1,5 (M) Code LA98300
  • Heater Code LA6099
  • Conversion kit from NPSM connection to metric connection Code LA200340                                                                                                                                                      from 1″ NPSM to M36X2 Suction – from 1/2″ NPSM to M20X2 Recirculation – from 3/8″ NPSM to M16X1,5 Delivery
