The proven performance of self-priming piston transfer pump allows accurate handling and transfer of a wide range of fluids, guaranteeing efficient operation, maximum productivity and the possibility of supplying multiple workstations simultaneously.

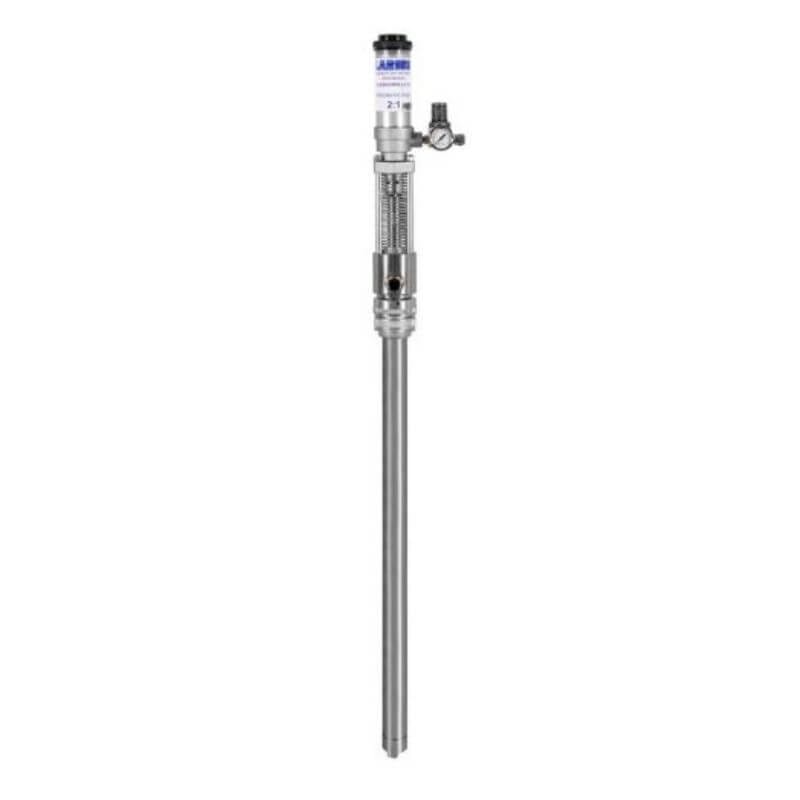

The P31 2:1 pneumatic pump with its compact and robust structure, is available in long or short divorced version and in carbon steel or stainless steel material to reach a long-lasting performance.

Advantages

  • Atex certified Ex II 2 G c IIB T4
  • Low starting pressure
  • Small and compact design
  • Fast priming and immediate product flow
  • Adjustable material flow
  • High quality material gaskets
  • No product leakage
  • Low noise level
  • Less components and reduced maintenance
Request quote
Compare product Categories: , , Tags:
Subscribe to newsletter

Additional information

Version

Lunga / Corta
Portata a 100 cicli / min

10 l/min
Air pressure range

2-12 bar / 40-174 psi
Max. fluid outlet pressure

24 bar – 300 psi
Delivery per cycle

100 cc
Air consumption at 60 cycles / min

3 bar -70 l/min
5 bar – 110 l/min
7 bar – 150 l/min
Air supply inlet

1/4" BSPP (F)
Material inlet

Versione corta – M36X2
Versione lunga – Valvola fresata1" BSPP (F)
Fluid outlet

3/4" BSPP (F)
Materiale pompante

Stainless steel AISI 303 – AISI 304 / Acciaio al carbonio
Piston material

Stainless steel AISI 420 B
Seals material

PTFE
Effective motor diameter

1 3/8" – 35 mm
Piston stroke

4" -100 mm
Air operated transfer pumps catalogue
  • Home and commercial appliance assembly
  • Automotive and aerospace assembly
  • Paint circulation
  • Bonding
  • Paper - cardboard processing
  • Leather processing
  • Woodworking
  • Metal working
  • Lubrication
  • Packaging
  • Coating and laminating
  • Flexographic printing
  • Chemicals products transferring
  • Adhesives
  • Glues
  • Detergents
  • Release agents
  • Lubricating greases
  • Inks
  • Lacquers
  • Mineral oils
  • Vegetable oils
  • Primer
  • Chemical products
  • Low viscosity resins
  • Tinctures
  • Water based paints
  • Solvent based paints
  • Air motor valve repair kit Code LA40025
  • PTFE gasket kit Code LA40041
  • Pneumatic regulator kit Code LA40067
  • Air pressure regulator 1/4″ + Pressure gauge 0-10 bar Code LA3345
  • Hose connector 3/4″ BSPP Code LA3337
  • Drum tripod h 550 mm Code LA3352/1
  • Wall mounting bracket kit Code LA3351/1
  • 2″ adapter200 l drum Code LA3465
  • Suction hose + filter for viscous products Code LA16608
  • Stainless steel suction hose + filter for viscous products Code LA16612
