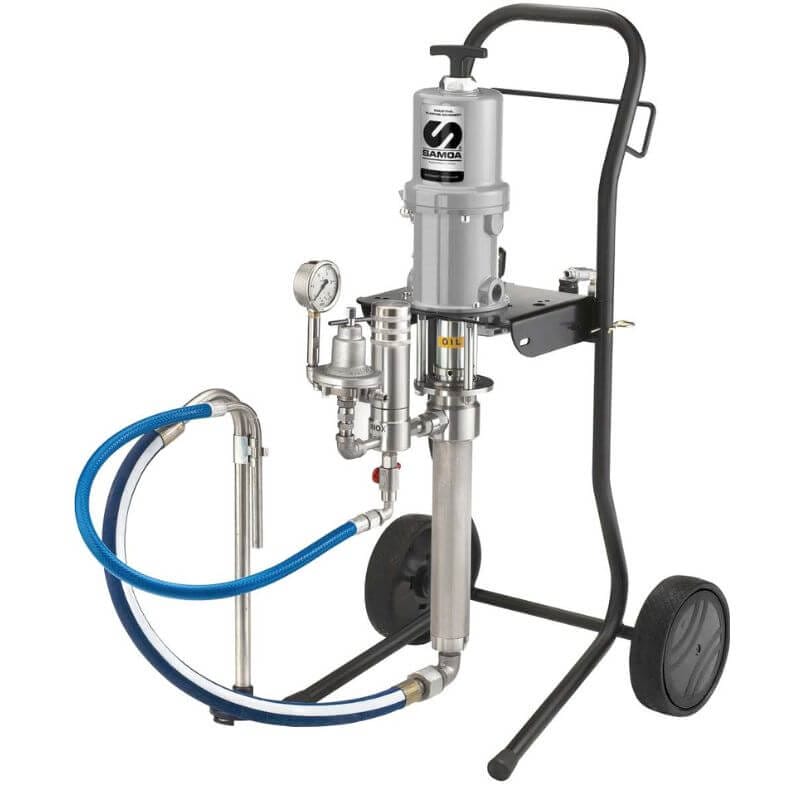

Professional pneumatic pump for low pressure finishing spray, assembled and tested to reach all sector applications needs to guarantee high performance and a long cycle of use.
The powerful low pressure spray units, Atex certified, are available in different configurations to allow you to operate with the suction system directly from the original drum or in case you have to use a little quantity of product with the 6 l gravity tank. Both performing solutions guarantee a high transfer efficiency of low and medium viscosity products and a homogeneous coverage on any wooden or metal surfaces.
The low pressure paint sprayers are available in stainless steel or aluminium constructon and they have a useful range of accessories as low pressure spray guns and low pressure spray tips.
Advantages
| Version |
Carrello |
|---|---|
| Material |
Acciaio inox versione divorziata corta |
| Effective motor diameter |
3″ |
| Max. air pressure |
7 bar |
| Max. fluid outlet pressure |
7 bar |
| Air supply inlet |
1/4″ BSPP (F) |
| Fluid outlet |
1/4″ BSPP (M) |
| Max. delivery |
7,5 l/min |
| Max. air consumption |
3 bar 200 l/min, 5 bar 350 l/min, 7 bar 470 l/min |
| Delivery per cycle |
150 cc |
| Sound pressure level |
≤ 80 dB (A) |
| Weight |
24 Kg |
