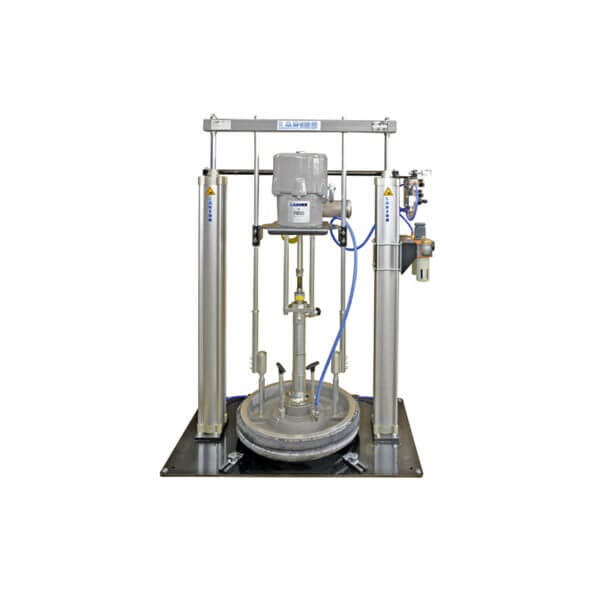

Complete high performance extrusion system designed to maximize plant’s production capacity and to pump high viscosity products.

Advantages

▪ Atex certified Ex II 2 G Ex h IIB T6 Gb

▪ Direct suction from a wide range of drums

▪ Long lasting performance

▪ Easy to integrate in all manufacturing lines

▪ Quick container change over

▪ Reduced maintenance cost

Additional information

Modello

K500160
Sirio 22:1 Cod. 99505

Max. delivery

9 l/min

Air pressure range

3-7 bar / 40-100 psi

Max. fluid outlet pressure

154 bar – 2.233 psi

Delivery per cycle

150 cc

Air consumption at 60 cycles / min

3 bar – 760 l/min
5 bar – 1.260 l/min
7 bar – 1.760 l/min

Air supply inlet

3/4″ BSPP (F)

Fluid outlet

1″ BSPP (M)

Materiale pompante

Acciaio al carbonio

Piston material

Stainless steel 420B

Seals material

PTFE + PE 1000

Effective motor diameter

Ø 6 1/2″ – 162 mm

Piston stroke

Ø 4″ – 100 mm

Max. temperatura d'esercizio

80 °C

Capacità fusto

200 l

Max. altezza fusto

990 mm

Piatto premente

Cod. 510100
Materiale alluminio
Guarnizione doppia toroidale in EPDM

Elevatore pneumatico

Cod. 510000
Bicolonna doppio effetto
Altezza 1.560 mm – 2.660 mm

Altezza sistema completo

2.390 mm – 2.890 mm

  • Home and commercial appliance assembly
  • Automotive and aerospace assembly
  • Solar panels construction
  • Windows and doors manufacturing
  • Insulating glass supply
  • Mechanical Engineering
  • Electronic manufacturing
  • Acrylics
  • Adhesives
  • Bitumen
  • Glues
  • Sealing gels
  • Lubricating greases
  • Inks
  • Latex
  • Mastics
  • High solid product
  • Conductive and assembly pastes
  • Polyurethanes
  • Single or double components products
  • Epoxy resins
  • Sealants
  • Silicones
  • Urethanes
  • Reactive paints

▪ Kit valvola motore Sirio Cod. LA40095

▪ Kit guarnizione pompante 200 cc Cod. LA40265

▪ Kit guarnizioni motore Sirio Cod. LA40094

▪ Paranco bicolonna – Doppio effetto – Fusto 200 l Cod. LA510000

▪ Piatto premente – Guarnizione doppia toroidale- Fusto 200 l Cod. LA510100

▪ Regolatore di flusso alta pressione – 10 – 250 bar – Prodotti bassa viscosità Cod. LA7130

▪ Regolatore di flusso alta pressione – Acciaio inox – 30 – 210 bar – Prodotti alta viscosità Cod. LA7040

▪ Regolatore di flusso alta pressione – Acciaio inox – 30 – 110 bar – Prodotti alta viscosità Cod. LA7040/2

▪ Regolatore di flusso alta pressione – Acciaio inox – 30 – 70 bar – Prodotti alta viscosità Cod. LA7040/3

▪ Regolatore di flusso alta pressione – Acciaio inox – 10 – 320 bar – Prodotti viscosi Cod. LA7050
