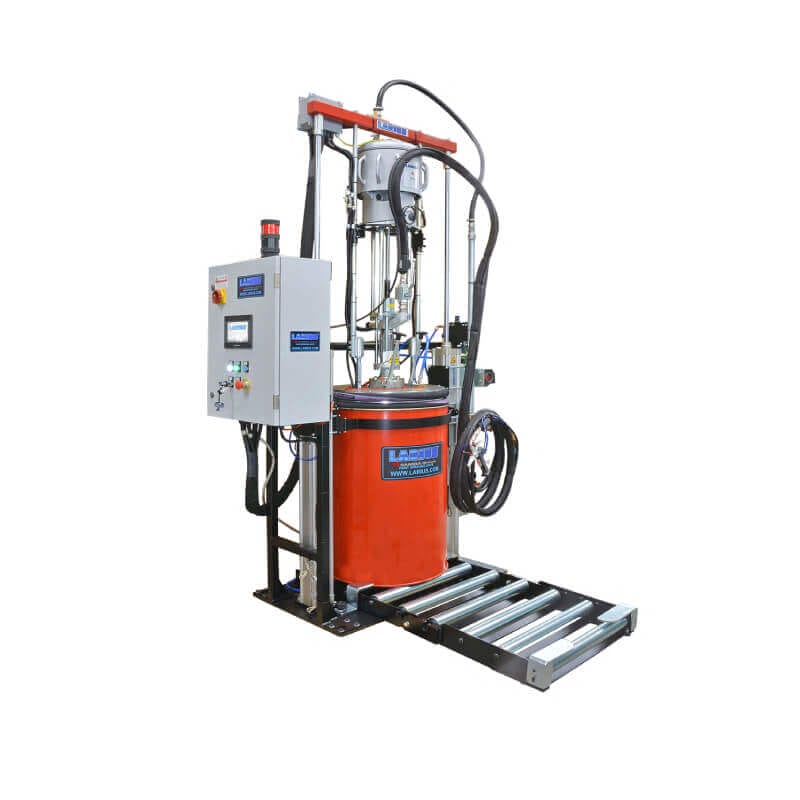

Warm melt extrusion systems, with reliable performance for all applications that require a constant monitoring of product heating to preserve its chemical characteristics.

The Touch Screen panel has a simple and intuitive configuration to improve the efficiency of the application process and to reduce the working cycles.

The pump sucks the product directly from 30 l – 200 l drums.

Advantages

  • Max. operating temperature 90 °C
  • Max. delivery 12 l/min
  • Direct suction from 30 l – 200 l drums
  • Quick container change over
  • No overheated material
  • Less product waste
  • Easy to integrate in all manufacturing lines
  • Long and reliable product life
  • User friendly
  • Easy maintenance
Request quote
Compare product Categories: , , Tag:

Additional information

Max. delivery

12 l/min
Air supply inlet

3/4″ BSPP (M)
Fluid outlet

1″ BSPP (F)
Effective motor diameter

10″ – 254 mm
Piston stroke

4 3/4″ – 120 mm
Delivery per cycle

200 cc
Seals material

PTFE + PE 1000
Sound pressure level

<90 dB (A)
Weight

450 Kg
Lift

Two post ram – Double effect
Drum

30 l (h max. fusto 480 mm) – 200 l ( h max. fusto 990 mm)
Piston material

Stainless steel 420B
Materiale pompante

Acciaio al carbonio
Max. working temperature Pump - Follower plate

90 °C
Max. working temperature Hoses - Valves - Regulators

90 °C
Air pressure range

3-7 bar / 40-100 psi
Max. fluid outlet pressure

320 bar – 4.640 psi, 380 bar – 5.510 psi
Max. height thermo heated system

1.500X1.500X3.000 mm
Piatto premente termoriscaldato

Guarnizione doppia toroidale
Materiale piatto premente

Alluminio
Materiali guarnizioni piatto premente

EPDM
Warm melt extrusion pumps catalogue
  • Home and commercial appliance assembly
  • Automotive and aerospace assembly
  • Furniture assembly
  • Advanced compounds
  • Solar panels construction
  • Electronic manufacturing
  • Tape and labels production
  • Cables production
  • Windows and doors production
  • Insulating glass production
  • Adhesives
  • Glues
  • Mastics
  • High solid product
  • Pre-impregnated resin mix
  • Paraffin
  • Epoxy resins
  • Sealants
  • Silicones

▪ Ram and pump air pressure booster + tank 24 l. Operative pressure 2 – 12 bar Code LA200121

▪ Ram air pressure booster. Operative pressure 2 – 12 bar Code LA200125

▪ Warm melt system extrusion gun. Part No. 15027 Included (articulated swivel) Code LA200124

▪ Extrusion gun articulated swivel 3/8″ – 6 mm – 250 bar Code LA15027

▪ Nozzle for warm melt applications. Gasket in contact with material in Nylon Code LA200105

▪ Ram 200 l palletized transport kit Code LA20122

▪ Airless heated hose 1,5 m – 1/4″ BSPP (F) – 1/4″ BSPP (F) 310 bar Code LAWHA25051

▪ Airless heated hose 5 m – 1/4″ BSPP (F) – 1/4″ BSPP (F) 310 bar Code LAWHA25151

▪ Airless heated hose 7,5 m – 1/4″ BSPP (F) – 1/4″ BSPP (F) 310 bar Code LAWHA25251

▪ Airless heated hose 1,5 m – 3/8″ BSPP (F) – 3/8″ BSPP (F) 240 bar Code LAWHA38051

▪ Airless heated hose 5 m – 3/8″ BSPP (F) – 3/8″ BSPP (F) 240 bar Code LAWHA38151

▪ Airless heated hose 7,5 m – 3/8″ BSPP (F) – 3/8″ BSPP (F) 240 bar Code LAWHA38251

▪ Airless heated hose 1,5 m – 1/2″ BSPP (F) – 1/2″ BSPP (F) 345 bar Code LAWHA50051

▪ Airless heated hose 5 m – 1/2″ BSPP (F) – 1/2″ BSPP (F) 345 bar Code LAWHA50151

▪ Airless heated hose 7,5 m – 1/2″ BSPP (F) – 1/2″ BSPP (F) 345 bar Code LAWHA50251

▪ Integrated controller ip40 Code LAWTC40I

▪ External controller ip40 Code LAWTC40E

▪ External controller ip65 Code LAWTC65E

▪ External controller ip65 – 3 users Code LAWTC65E-3

NB: Order the temperature controller with its heated hose.
