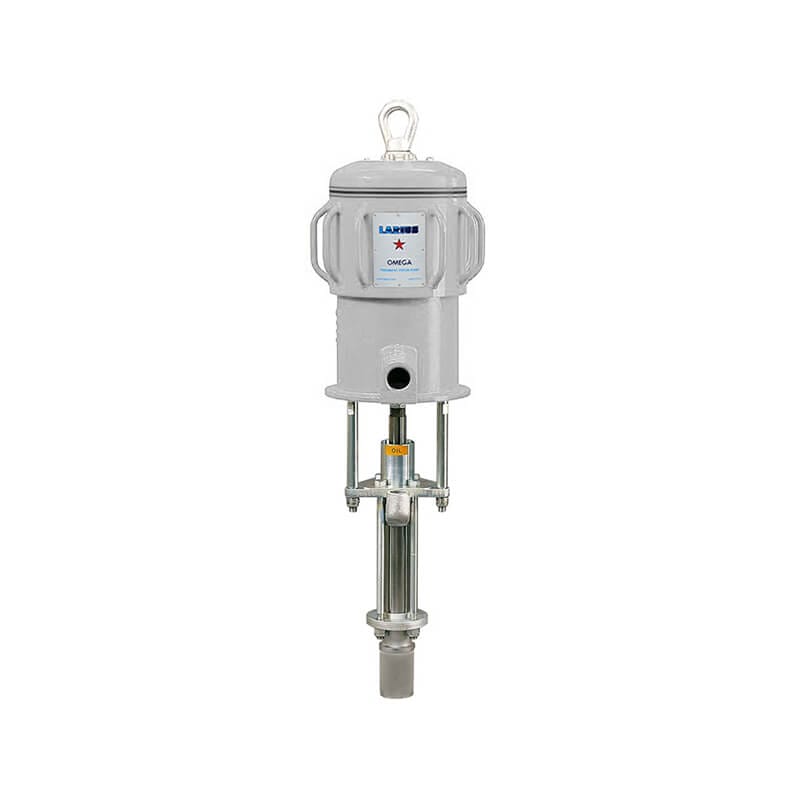

OMEGA 28:1 Dynamic primer extrusion pump. Divorced version

Additional information

Max. delivery	12 l/min
Air pressure range	3-8 bar / 40 -120 psi
Max. fluid outlet pressure	224 bar – 3.248 psi
Delivery per cycle	200 cc
Air consumption at 60 cycles / min	3 bar – 1.100 l/min 5 bar – 1.800 l/min 7 bar – 2.500 l/min
Air supply inlet	3/4" BSPP (M)
Fluid outlet	1" BSPP (F)
Materiale pompante	Acciaio al carbonio
Piston material	Stainless steel 420B
Seals material	PTFE + PE 1000
Effective motor diameter	Ø 7" – 180 mm
Piston stroke	Ø 4 3/4" – 120 mm, Ø 4" – 100 mm
Max. temperatura d'esercizio	80 °C

▪ Omega motor gaskets kit Code LA40066

▪ 200 cc lower gasket kit Code LA40265

▪ Omega motor gaskets kit Code LA40345

▪ Double post – Double acting power ram for – 30 l drum Code LA510090/1

▪ Double post – Double acting power ram for 200 l drum Code LA510000

▪ Single lip follower plate for 30 l drum Code LA510750

▪ Double hose seal follower plate for 200 l drum Code LA510100

▪ High flow regulator – 10 / 250 bar – Low viscosity products Code LA7130

▪ SS High flow regulator 30 / 210 bar – High viscosity products Code LA7040

▪ SS High flow regulator 30 / 110 bar – High viscosity products Code LA7040/2

▪ SS High flow regulator 30 / 70 bar – High viscosity products Code LA7040/3

▪ SS High flow regulator 10 – 320 bar – Viscosity products Code LA7050
