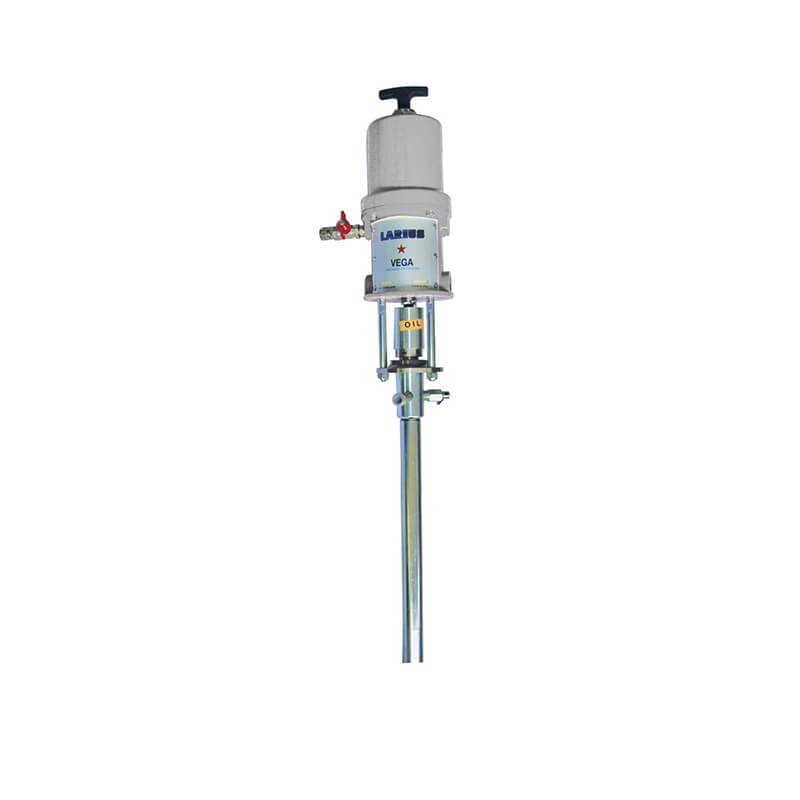

High performance extrusion package designed to maximize plant’s production capacity and to pump high viscosity products.

Advantages

▪ Atex certified Ex II 2 G c IIB T6

▪ Direct suction from a wide range of drums

▪ Long lasting performance

▪ Easy to integrate in all manufacturing lines

▪ Quick container change over

▪ Reduced maintenance cost

Additional information

Max. portata

0,8 l/min

Campo di regolazione pressione aria

3-8 bar / 40 -120 psi

Pressione massima uscita fluido

360 bar – 5.220 psi

Portata per ciclo

13 cc

Consumi aria a 60 cicli/min

3 bar -198 l/min
5 bar – 330 l/min
7 bar – 462 l/min

Ingresso alimentazione aria

3/8″ BSPP (F)

Uscita materiale

3/8″ BSPP (F)

Materiale pompante

Acciaio al carbonio

Materiale pistone

Acciaio inox 420B

Materiale guarnizioni

PTFE + PE 1000

Diametro effettivo motore

Ø 3″ – 75 mm

Corsa pistone

Ø 3″ – 75 mm

Max. temperatura d'esercizio

80 °C

  • Automotive and aerospace assembly
  • Electronic manufacturing
  • Home and commercial appliance assembly
  • Insulating glass supply
  • Mechanical Engineering
  • Solar panels construction
  • Windows and doors manufacturing
  • Acrylics
  • Adhesives
  • Bitumen
  • Conductive and assembly pastes
  • Epoxy resins
  • Glues
  • High solid product
  • Inks
  • Latex
  • Lubricating greases
  • Mastics
  • Polyurethanes
  • Reactive paints
  • Sealants
  • Sealing gels
  • Silicones
  • Single or double components products
  • Urethanes

▪ Vega air motor valve repair kit Code LA40401

▪ Vega motor gaskets kit Code LA40040

▪ 13 cc lower gasket kit Code LA40402/1

▪ Vega air exhaust kit Code LA40042

▪ Single post – Double acting power ram for 30 l drum Code LA510650

▪ Single post – Double acting mobile power ram for 30 l drum Code LA510600

▪ Double post – Double acting power ram for 30 l drum Code LA510090

▪ Double post – Double acting power ram for 200 l drum Code LA510000

▪ Single lip – follower plate for 30 l drum Code LA510760

▪ Single lip – follower plate for 200 l drum l Code LA510776

. SS High flow regulator 30 / 210 bar – Low viscosity products Code LA7030

▪ SS High flow regulator 30 / 110 bar – Low viscosity products Code LA7030/1

▪ SS High flow regulator 30 / 70 bar – Low viscosity products Code LA7030/2

▪ SS High flow regulator 30 / 210 bar – High viscosity products Code LA7040

▪ SS High flow regulator 30 / 110 bar – High viscosity products Code LA7040/2

▪ SS High flow regulator 30 / 70 bar – High viscosity products Code LA7040/3
