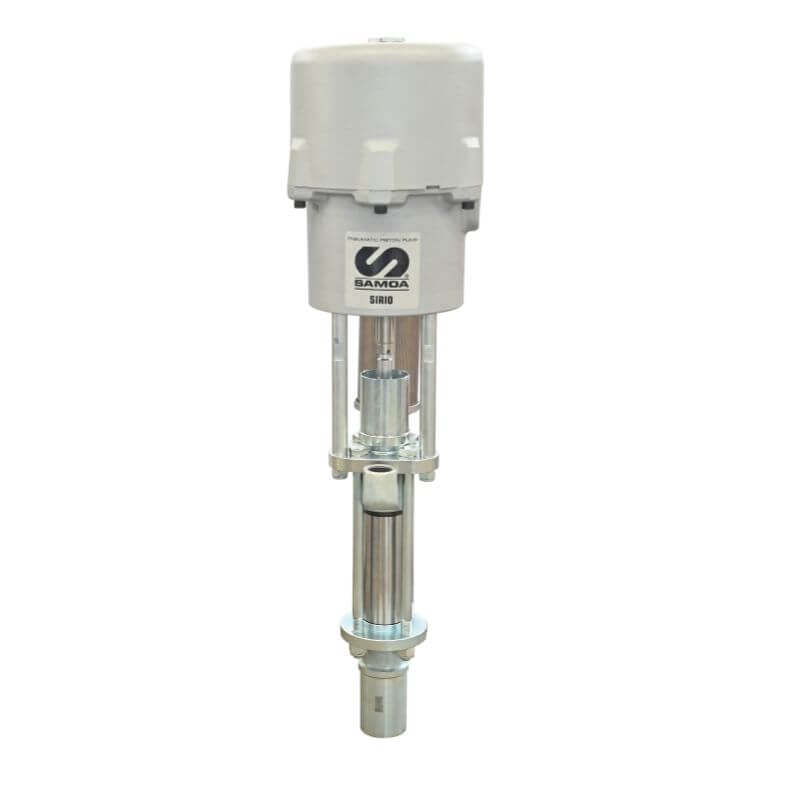

SIRIO 22:1 Dynamic primer extrusion pump. Divorced version

Additional information

Max. delivery	9 l/min
Air pressure range	3-7 bar / 40-100 psi
Max. fluid outlet pressure	154 bar – 2.233 psi
Delivery per cycle	150 cc
Air consumption at 60 cycles / min	3 bar – 760 l/min 5 bar – 1.260 l/min 7 bar – 1.760 l/min
Air supply inlet	3/4" BSPP (F)
Fluid outlet	1" BSPP (M)
Materiale pompante	Acciaio al carbonio
Piston material	Stainless steel 420B
Seals material	PTFE + PE 1000
Effective motor diameter	Ø 6 1/2" – 162 mm
Piston stroke	Ø 4" – 100 mm
Max. temperatura d'esercizio	80 °C

▪ Sirio air motor valve repair kit Code LA40095

▪ 200 cc lower gasket kit Code LA40265

▪ Sirio motor gaskets kit Code LA40094

▪ Double post – Double acting power ram for – 30 l drum Code LA510090/5

▪ Double post – Double acting power ram for 200 l drum Code LA510000

▪ Single lip follower plate for 30 l drum Code LA510770

▪ Double hose seal follower plate for 200 l drum Code LA510100

▪ High flow regulator – 10 / 250 bar – Low viscosity products Code LA7130

▪ SS High flow regulator 30 / 210 bar – High viscosity products Code LA7040

▪ SS High flow regulator 30 / 110 bar – High viscosity products Code LA7040/2

▪ SS High flow regulator 30 / 70 bar – High viscosity products Code LA7040/3

▪ SS High flow regulator 10 – 320 bar – Viscosity products Code LA7050
