Larius-Omega-pumping-unit-to-transfer-high-solid-products

The proven performance of self-priming piston transfer pump allows accurate handling and transfer of a wide range of fluids, guaranteeing efficient operation, maximum productivity and the possibility of supplying multiple workstations simultaneously.

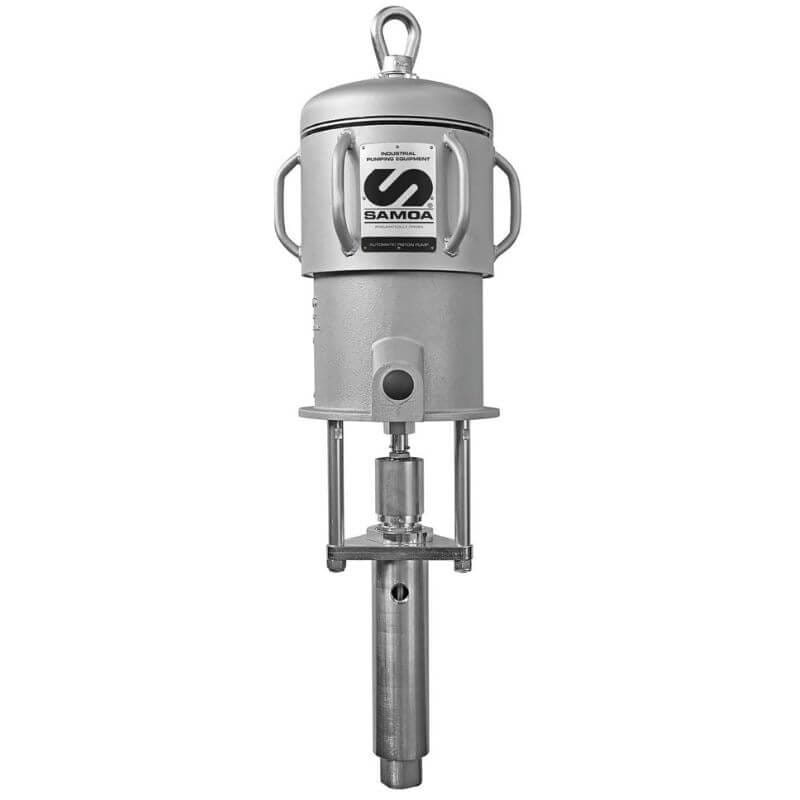

The Omega 30:1 pneumatic piston pump with its solid structure is available in carbon steel or stainless steel material to reach a long-lasting performance.

Advantages

  • Atex certified Ex II 2 G c IIB T6
  • Low starting pressure
  • Fast priming product flow
  • Adjustable material flow
  • High quality material gaskets
  • No product leakage
  • Low noise level
  • Less components and reduced maintenance
Request quote
Compare product Categories: , Tags:

Additional information

Max. flow rate at 60 cycles/ min

12 l/min
Air pressure range

3-8 bar / 40 -120 psi
Max. fluid outlet pressure

240 bar – 3.500 psi
Delivery per cycle

200 cc
Air consumption at 60 cycles / min

3 bar – 1.100 l/min
5 bar – 1.800 l/min
7 bar – 2.500 l/min
Air supply inlet
Material inelt

M36X2 (M)
Fluid outlet
Materiale pompante

Stainless steel AISI 303 / Acciaio al carbonio
Piston material

Stainless steel AISI 420 B
Seals material

PTFE + PE 1000
Effective motor diameter

7″ – 180 mm
Piston stroke

Ø 4 3/4″ – 120 mm
Air-operated transfer pumps catalogue
  • Home and commercial appliance assembly
  • Automotive and aerospace assembly
  • Paint circulation
  • Bonding
  • Paper - cardboard processing
  • Leather processing
  • Woodworking
  • Metal working
  • Lubrication
  • Packaging
  • Coating and laminating
  • Flexographic printing
  • Chemicals products transferring
  • Adhesives
  • Glues
  • Detergents
  • Release agents
  • Lubricating greases
  • Inks
  • Lacquers
  • Mineral oils
  • Vegetable oils
  • Primer
  • Chemical products
  • Low viscosity resins
  • Tinctures
  • Water based paints
  • Solvent based paints
  • Motor gasket kit Code LA40345
  • Pneumatic regulator kit Code LA40069
  • Air exhaust valve kit Code LA40066
  • 200 cc lower complete repair kit Code LA40076
  • Wall mounting bracket kit Code LA65085
  • Trolley Code LA65380
  • Air pressure regulator + filter + lubrificator CodeLA95350
  • Stainless steel high pressure regulator for recirculation 10-210 bar Code LA7000
  • Stainless steel high pressure flow regulator 30-210 bar for low viscosiy products Code LA7030
  • Complete high pressure line filter 60 mesh Code LA95200
  • Complete stainless steel high pressure line filter 60 mesh Code LA98300
