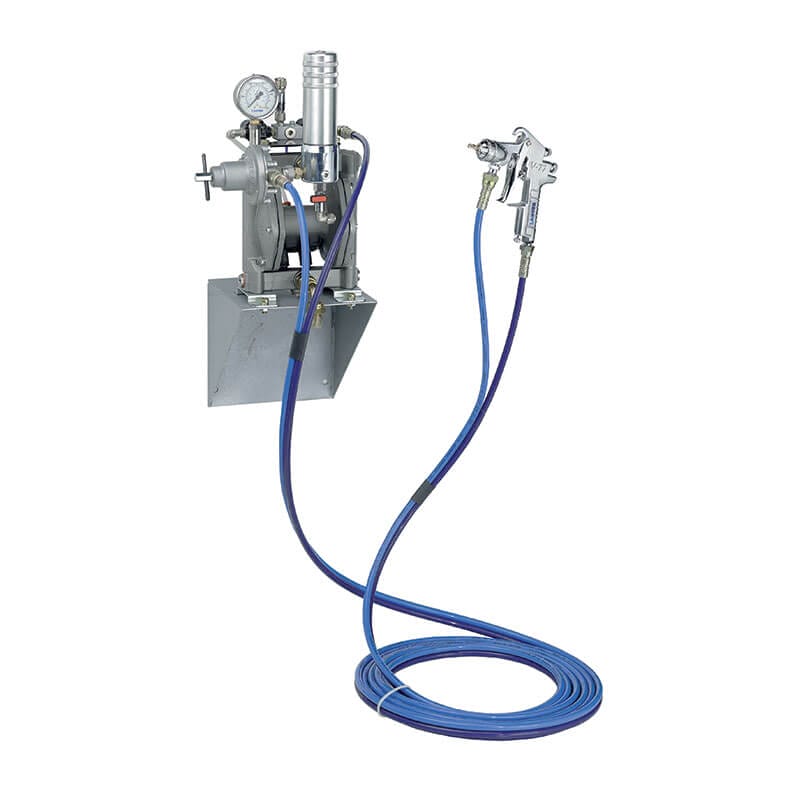

Professional pneumatic pumps for low pressure finishing spray, assembled and tested to reach all sector applications needs: they guarantee high performance and a long cycle of use.

The powerful low pressure spray units, Atex certified, are available in different configurations to allow you to operate with the suction system directly from the original drum or in case you have to use a little quantity of product with the 6 l gravity tank. Both performing solutions guarantee a high transfer efficiency of low and medium viscosity products and a homogeneous coverage on any wooden or metal surfaces.

The low pressure paint sprayers are available in stainless steel or aluminium constructon and they have a useful range of accessories as low pressure spray guns and low pressure spray tips.

Advantages

  • Atex certified Ex II 2 G c IIB T4
  • Fine atomisation, excellent finishing quality
  • Single gun or multigun feeding
  • Lightweight and portable structure to integrate in all job sites
  • Reduced overspray and constant flow
  • PTFE diaphragms
  • Less overspray and material waste
  • Safer and cleaner spray work enviroment
  • Easy to use and less maintenance



Additional information

Version

Parete

Material

Stainless steel, aluminum

Max. air pressure

7 bar

Max. fluid outlet pressure

7 bar

Air supply inlet

1/4″ BSPP (F)

Fluid outlet

1/4″ BSPP (M)

Material inelt

1/2″ BSPP (M)

Max. delivery

21 l/min

Max. air consumption

120 l/min

Delivery per cycle

420 cc

Sound pressure level

<70 dB (A)

Weight

18 Kg

  • General industrial finishing
  • Wood
  • Metal
  • Leather treatment
  • Fixatives
  • Base coat
  • Impregnating agents
  • Lacquers
  • Primer
  • Water / Solvent based products
  • Enamels
  • Topcoat
  • X-102 low pressure gun – nozzle 0,8 mm Code LA15108
  • X-102 low pressure gun – nozzle 1,0 mm Code LA15110
  • X-102 low pressure gun – nozzle 1,3 mm Code LA15113
  • X-102 low pressure gun – nozzle 1,5 mm Code LA15115
  • X-102 low pressure gun – nozzle 1,8 mm Code LA15118
  • Low pressure spray tip 0,8 mm – X102 Code LA15351
  • Low pressure spray tip 1,0 mm – X102 Code LA15352
  • Low pressure spray tip 1,3 mm – X102 Code LA15353
  • Low pressure spray tip 1,5 mm – X102 Code LA15354
  • Low pressure spray tip 1,8 mm – X102 Code LA15355
  • X-202 low pressure gun – nozzle 1,3 mm Code LA15313
  • X-202 low pressure gun – nozzle 1,5 mm Code LA15315
  • X-202 low pressure gun – nozzle 1,8 mm Code LA15318
  • X-202 low pressure gun – nozzle 2,0 mm Code LA15320
  • X-202 low pressure gun – nozzle 2,5 mm Code LA15325
  • Low pressure spray tip 1,3 mm – X-202 Code LA15351
  • Low pressure spray tip 1,5 mm – X-202 Code LA15352
  • Low pressure spray tip 1,8 mm – X-202 Code LA15353
  • Low pressure spray tip 2,0 mm – X-202 Code LA15354
  • Low pressure spray tip 2,5 mm – X-202 Code LA15355
  • Twin flexible low pressure hose Ø 1/4″- 1/4″ BSPP – 5 m Code LA8150
  • Twin flexible low pressure hose Ø 1/4″- 1/4″ BSPP – 7,5 m Code LA8151
  • Twin flexible low pressure hose Ø 1/4″- 1/4″ BSPP – 10 m  Code LA8152
  • Twin flexible low pressure hose Ø 1/4″- 1/4″ BSPP – 15 m  Code LA8153
  • Stainless steel back pressure rgulator 0-14 bar – 12 l/min Code LA7208
  • Stainless steel back pressure rgulator 0-8 bar – 12 l/min  Code LA7208/1
  • Short line filter (Larius 2 1:1 on trolley / suction system – on wall) Code LA8107
  • Long filter with recircultion Code LA8049
  • Stainless steel line filter Code LA8096
  • Filter with gravity tank Code LA8113
  • 6 l gravity tank Code LA35101
  • Aluminium mechanical low pressure regulator 0-7 bar -14 l/min Code LA7185
  • Stainless steel mechanical low pressure regulator 0-7 bar -14 l/min Code LA7201
  • Stainless steel mechanical low pressure regulator for viscous products 0-14 bar -27 l/min Code LA7204
  • Heater Code LA6099
