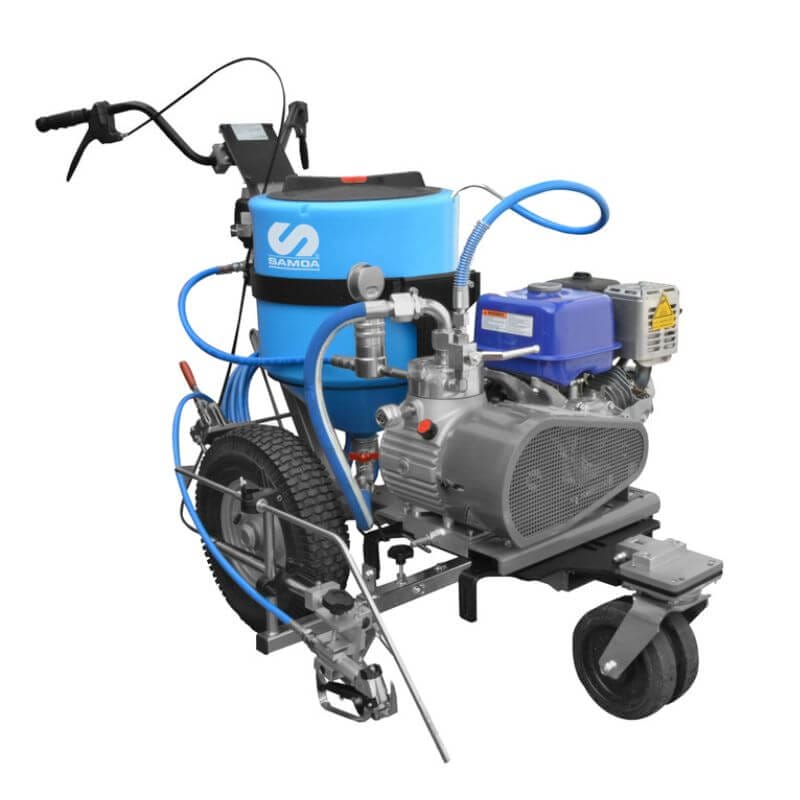

Professional road marking machine with proven airless striping technology: the Dalì line striper, with a compact and robust structure, is available in a manual version with diaphragm pump and sucks the product directly from the 23 l paint can or from the useful 50 l gravity tank.

This line marking equipment is designed for professional striping contractors to mark road and all surfaces quickly with filtered airless paint to reach defined lines at the first pass.


  • Medium size marking -maintenance – painting jobs
  • Intuitive use by the operator
  • Single line continuous or dashed
  • Defined lines with width from 3 to 30 cm
  • Ergonomic adjustable handle with reduced vibrations
  • Front tiller with 360° pivot wheel and directional locking
  • Pneumatic wheels Ø 400 mm. Ease of movement and stability guarantee
  • Speed application and better quality atomization
  • Reduced overspray and save of product
  • Easy of use and less maintenance

Read more


Additional information

Max. supply pressure

220 bar

Max. delivery

4 l/min

Potenza motore Yamaha

4,8 HP

Capacità deposito vernice airless

Latta 23 l – Serbatoio a gravità 50 l




120 Kg

Il modello include

Filtro con manometro – Tubo di ricircolo – Valigetta attrezzi

The Dalì model includes filter with pressure gauge, recirculation hose and tools box.

  • Airport
  • Public and private areas
  • Playgrounds
  • Sports circuits
  • External facades
  • Galleries and tunnels
  • Outdoor and underground parking
  • Pedestrian crossings
  • Cycle paths
  • Roads / Highways
  • Single component airless paint – water/solvet not refractive
  • Airless hose Ø 1/4″ – M16X1,5 inlet swivel – 10 m Code LA35015
  • AT250 manual airless spray gun – M16X1,5 inlet swivel + Nozzle holder Code LA11200
  • AT250 manual airless spray gun – M16X1,5 inlet swivel Code LA11210
  • Europe airless nozzle holder 11/16″ W Code LA18270
  • Super Fast Clean airless nozzles. Size from 11-20 to 51-80 Code LASFC
  • Top Spraying Clean airless nozzles. Size from 7-10 to 31-60 Code LATSC
  • 50 l gravity tank Code LA18240
  • 50 l gravity tank + cover Code LA18245
  • 50 l gravity tank + cover + basket Code LA18241
  • 11 l gravity tank + glass beads diffuser hose Code LA4500
  • Complete kit for second airless gun Code LA200270
  • (mounting kit Code LA4307 + airless gun Code LA11200 + airless nozzles Code LASFC 11-40 / 13-40 /15-40)
  • Mounting kit for second airless gun (gun not included) LA4307
  • 11 l gravity tank+ 1 diffuser hose + 1 glass beads manual spray gun kit Code LA18359
  • 11 l gravity tank+ 2 diffuser hoses + 2 glass beads manual spray guns kit Code LA18354
  • Laser pointer kit Code LA4038
  • Working light kit Code LA4506
  • Flashing telescopic rod kit Code LA4507
  • Gun handling + front pivot wheel (manual liner models) Code LA4840
