Larius-

The proven performance of self-priming piston transfer pump allows accurate handling and transfer of a wide range of fluids, guaranteeing efficient operation, maximum productivity and the possibility of supplying multiple workstations simultaneously.

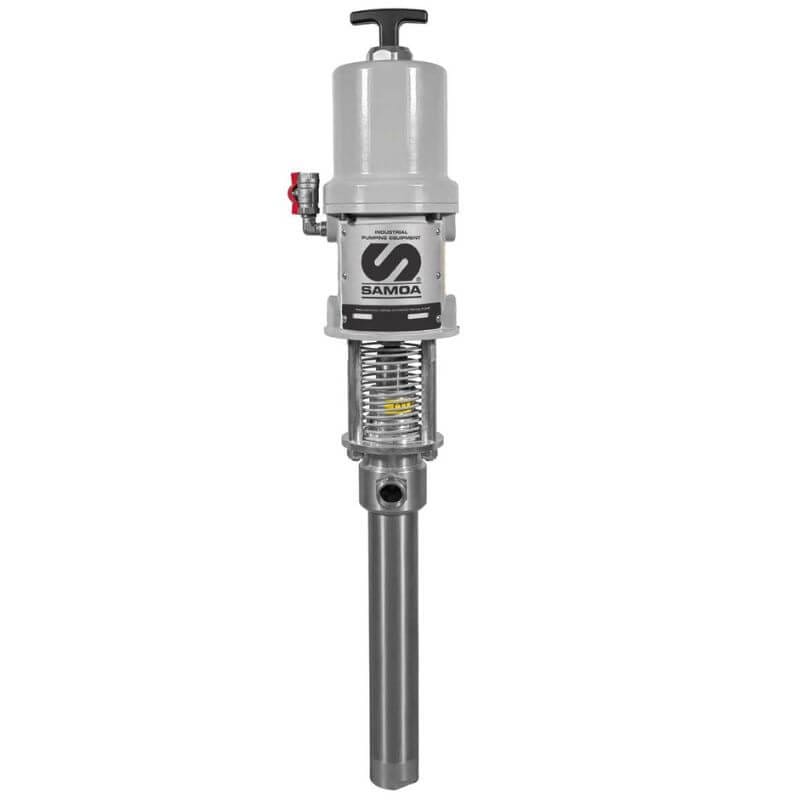

The Vega 5:1 pneumatic pump with its compact and robust structure, is available in long or short divorced version, in carbon steel or stainless steel material to reach a long-lasting performance.

Advantages

  • Atex certified Ex II 2 G c IIB T6
  • Low starting pressure
  • Fast priming product flow
  • Adjustable material flow
  • High quality material gaskets
  • No product leakage
  • Low noise level
  • Less components, reduced maintenance





Request quote
Compare product Categories: , Tags:

Additional information

Version

Lunga / Media / Corta
Max. flow rate at 60 cycles/ min

10 l/min
Air pressure range

3-8 bar / 40 -120 psi
Max. fluid outlet pressure

40 bar – 600 psi
Delivery per cycle

170 cc
Air consumption at 60 cycles / min

3 bar – 198 l/min
5 bar – 330 l/min
7 bar – 462 l/min
Air supply inlet

3/8″ BSPP (F)
Material inelt

Versione corta 1" BSPP (F)
Fluid outlet

3/4″ BSPP (F)
Materiale pompante

Stainless steel AISI 303 – AISI 304 / Acciaio al carbonio
Piston material

Stainless steel AISI 420 B
Seals material

PTFE
Effective motor diameter

Ø 3″ – 75 mm
Piston stroke

Ø 3″ – 75 mm
Air-operated transfer pumps catalogue
  • Home and commercial appliance assembly
  • Automotive and aerospace assembly
  • Paint circulation
  • Bonding
  • Paper - cardboard processing
  • Leather processing
  • Woodworking
  • Metal working
  • Lubrication
  • Packaging
  • Coating and laminating
  • Flexographic printing
  • Chemicals products transferring
  • Adhesives
  • Glues
  • Detergents
  • Release agents
  • Lubricating greases
  • Inks
  • Lacquers
  • Mineral oils
  • Vegetable oils
  • Primer
  • Chemical products
  • Low viscosity resins
  • Tinctures
  • Water based paints
  • Solvent based paints
  • Air motor valve repair kit Code LA40401
  • Motor gasket kit Code LA40040
  • Pneumatic regulator kit Code LA40053
  • Air exhaust kit Code LA40042
  • 260 cc lower PTFE gasket kit Code LA40236
  • Wall mounting bracket Code LA91200
  • Trolley Code LA96320
  • Air pressure regulator 3/8″ + air filter + metallic nut Code LA91107
  • Drum tripod h 550 mm Code LA3352/1
  • 2″ adapter200 l drum Code LA3460
  • Stainless steel low pressure flow regulator for viscous products + Pressure gauge 0-14 bar Code LA7204
  • Stainless steel low pressure regulator visocus for viscous produts with increased thickness diaphragms + Pressure gauge 0-20 bar Code LA7204/1
