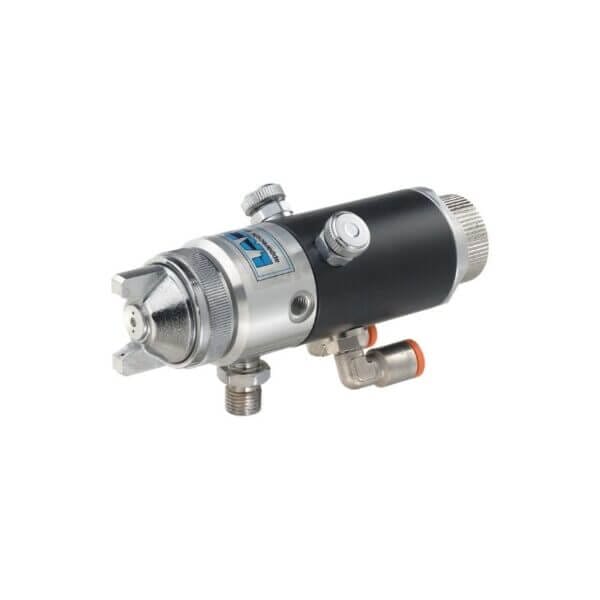

MA98L automatic gun for low pressure painting system
Nozzle kit included. Specificy size during order phase.
• Atex certified Ex II 2 G Ex h IIB T6 Gb
• Transfer efficiency and material saving
• Quick and easy installation
|
TECHNICAL DATA
Fluid inlet |
1/4″ BSPP (M) |
| Max. fluid pressure | 8 bar |
| Air inlet | 1/8″ BSPP Hose Ø 8×6 Quick connection |
| Max. air pressure | 7 bar |
| Weight | 621 g |
- Paint circulation
- General industrial finishing
- Woodworking and furniture
- Metal working
- Leather treatment
- Glossy finishes
- Fixatives
- Base coat
- Impregnating agents
- Lacquers
- Mordants
- Primer
- Enamels
- Tinctures
- Single component airless paint – water/solvet not refractive
- Water based paints
- Solvent based paints
- Catalysed paints
|
Nozzle code – Ø |
Air cup code | Needle code |
|
LA12056 0,8 mm |
LA12010 6/S | LA11799 0,6 mm |
|
LA12050 1,0 mm |
LA12010 6/S |
LA11791 0,9 mm |
|
LA12051 1,3 mm |
LA12010 6/S |
LA11791 0,9 mm |
|
LA12052 1,5 mm |
LA12006 3/P |
LA11792 1,1 mm |
|
LA12053 1,8 mm |
LA12002 6/S |
LA11792 1,1 mm |
|
LA12054 2,2 mm |
LA12003 8/S |
LA11793 1,6 mm |
| LA12055 2,8 mm | LA12004 12/S |
LA11794 2,0 mm |
