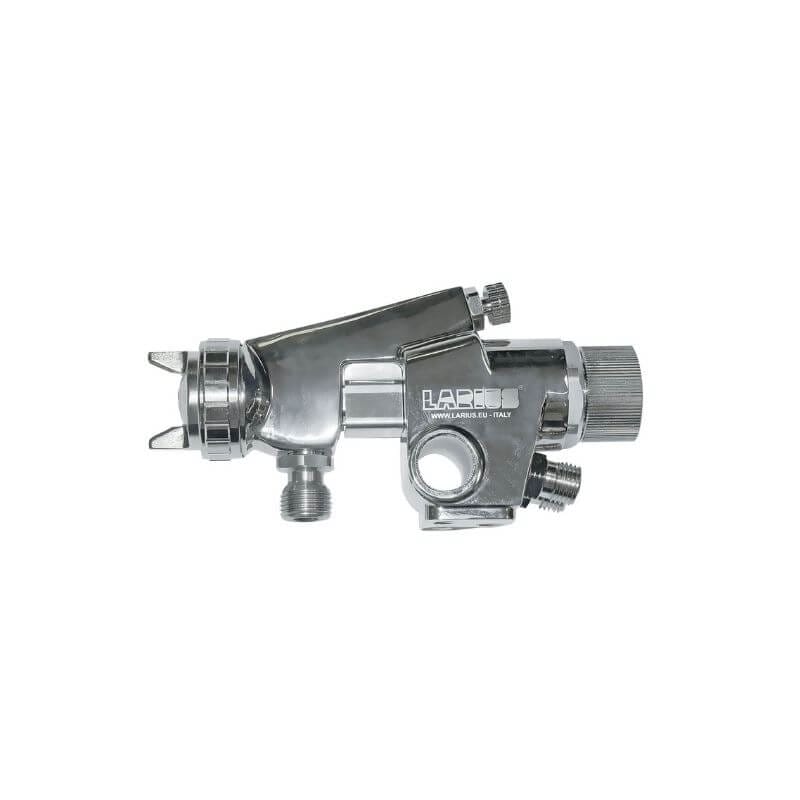

LA22 SERIES. Stainless steel nozzle included
• Transfer efficiency and material saving
• Quick and easy installation
TECHNICAL DATA
| Fluid inlet | 3/8″ BSPP (M) |
| Fluid outlet ml/min | Ø 0,8 mm – 180 ml/min Ø 1,2 mm – 500 ml/min Ø 1,5 mm – 270 ml/min |
| Max. fluid pressure | 6,8 bar |
| Air inlet | 1/4″ BSPP – Hose Ø 8×6 quick connection |
| Max. air pressure | 7 bar |
| Air consuption | Ø 0,8 mm – 280 l/min Ø 1,2 mm – 530 l/min Ø 1,5 mm – 330 l/min |
| Fan | Ø 0,8 mm – 340 mm Ø 1,2 mm – 440 mm Ø 1,5 mm – 340 mm |
| Peso | 440 g |
- Paint circulation
- General industrial finishing
- Woodworking and furniture
- Metal working
- Leather treatment
- Glossy finishes
- Fixatives
- Base coat
- Impregnating agents
- Lacquers
- Mordants
- Primer
- Enamels
- Tinctures
- Single component airless paint – water/solvet not refractive
- Water based paints
- Solvent based paints
- Catalysed paints
Stainless steel nozzle 0,8 mm Code LA11495
Stainless steel nozzle 1,2 mm Code LA11496
Stainless steel nozzle 1,5 mm Code LA11497
