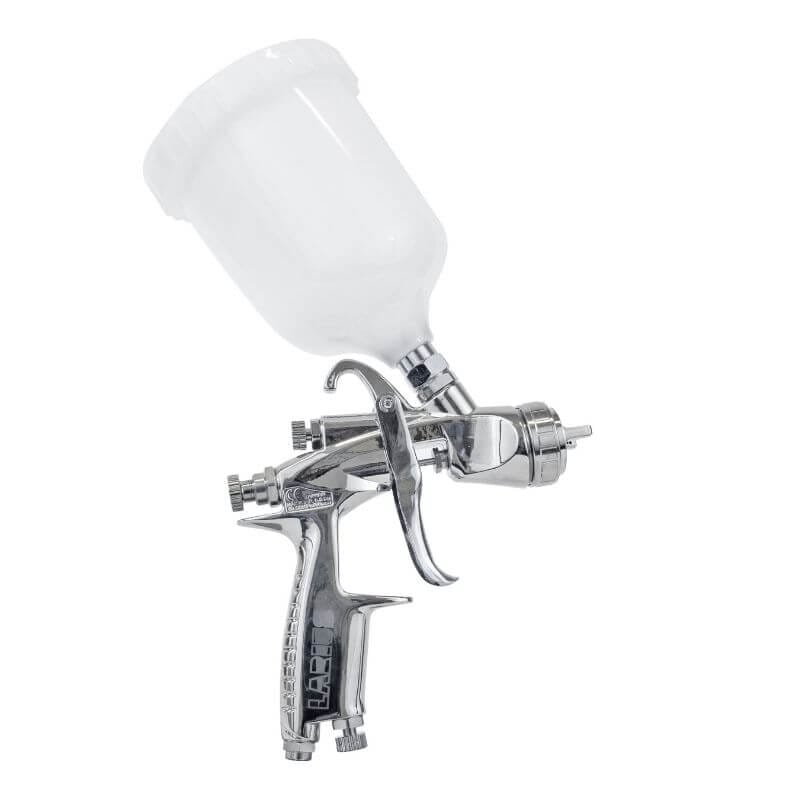

X402 upper cup series gravity feeding.
Spray nozzle included.

• Perfect fine atomization for low and medium viscosity products
• Wide range of spray nozzle for wood, metal and plastic coating
• Stainless steel nozzle

Recommended spraying distance 20 cm

Request quote
Compare product Category: Tags:

Additional information

Modello

Ugello in acciaio inox a bassa pressione incluso
X-402 Ø 1,2 mm
X-402 Ø 1,4 mm
X-402 Ø 1,8 mm
X-402 Ø 2,5 mm
Ingresso fluido

M16X1,5
Uscita fluido ml/min

X-402 Ø 1,2 mm – 160 ml/min
X-402 Ø 1,4 mm – 265 ml/min
X-402 Ø 1,8 mm – 400 ml/min
X-402 Ø 2,5 mm – 580 ml/min
Ingresso aria

1/4" G
Max. air pressure

7 bar
Consumo aria l/min

X-402 Ø 1,2 mm – 370 l/min
X-402 Ø 1,4 mm – 370 l/min
X-402 Ø 1,8 mm – 380 l/min
X-402 Ø 2,5 mm – 360 l/min
Ventaglio mm

Distanza di spruzzatura consigliata 25 cm
X-402 Ø 1,2 mm – 250 mm
X-402 Ø 1,4 mm – 320 mm
X-402 Ø 1,8 mm – 320 mm
X-402 Ø 2,5 mm – 340 mm
Weight

590 g
Painting accessories catalogue
  • Paint circulation
  • General industrial finishing
  • Woodworking and furniture
  • Metal working
  • Leather treatment
  • Glossy finishes
  • Fixatives
  • Base coat
  • Impregnating agents
  • Lacquers
  • Mordants
  • Primer
  • Enamels
  • Tinctures
  • Single component airless paint – water/solvet not refractive
  • Water based paints
  • Solvent based paints
  • Catalysed paints

▪ Nozzle – Air cup – Needle 1,2 mm Code LA14330

▪ Nozzle – Air cup – Needle 1,4 mm Code LA14331

▪ Nozzle – Air cup – Needle 1,8 mm Code LA14332

▪ Nozzle – Air cup – Needle 2,5 mm Code LA14333

▪ Plastic upper cup – Capacity 500 cc Code LA14140
