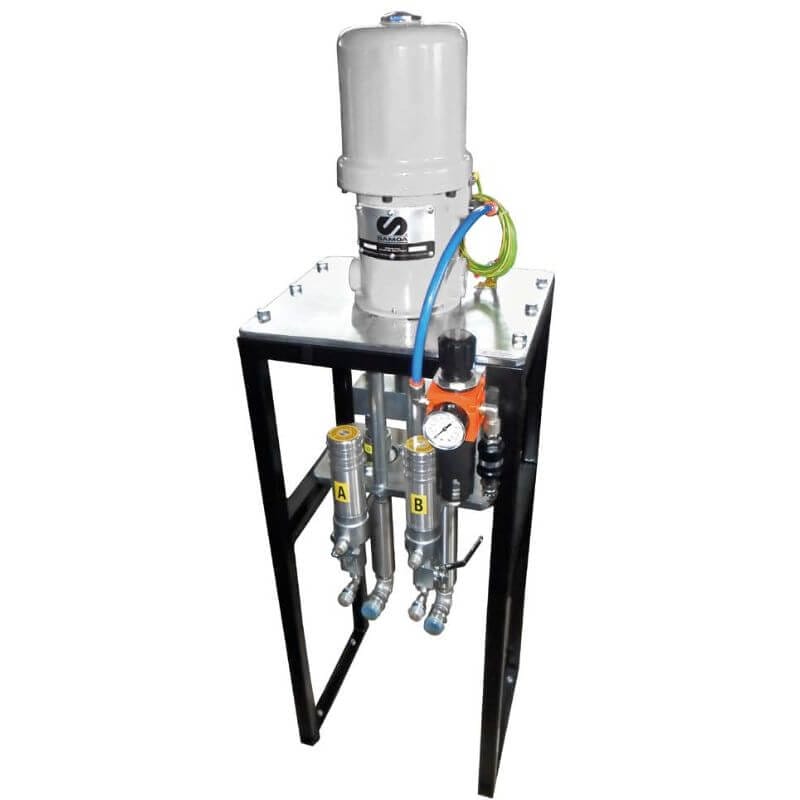

LARIUS-GHIBLI20-1-pneumatic-system-for-injection-resins

The 2K GHIBLI 20:1 application system, for the injection of two-component resins at a fixed ratio of 1:1, is designed for professional, rapid and efficient interventions in restoration and consolidation applications.

This type of injection equipment is recommended for the injection of high volumes of 2K resins with a high viscosity and with very fast chemical reactions.

Advantages

  • Regular pressure during the injection process
  • Large passage of materials – High flow rate
  • Efficient suction and constant material flow
  • Ease of use and simple maintenance
Request quote
Compare product Categories: , Tags:

Additional information

Versione

Carrello
Modelli

ENG 1011
Rapporto di miscelazione

1:1
Max. pressione di alimentazione

7 bar
Max. portata

3 l/min per pompante, 6 l/min
Max. pressione di lavoro

140 bar
Max. cicli al minuto

60
Injection resins pumps catalogue
  • Cellars
  • Filling cracks and crevices
  • Galleries and tunnels
  • Ground walls
  • Hanging gardens
  • Joint between mansory and slab
  • Joint between masonry and foundations
  • Pit lifts
  • Pre-slabs
  • Soil stabilization
  • Underground boxes
  • Sealing gels
  • Ghibli 40:1 air operated motor Code LA96551
  • Pneumatic regulation group Code LA96250
  • Ghibli 40:1 pump lowers Code LA96500
  • Line filter M16X1.5 Code LA96220
  • Suction system for viscous products Code LA16610
  • 2K stainless steel gun Code LA18756
  • Plastic static mixer 3/8″- 13,77 cm Code LA23327
