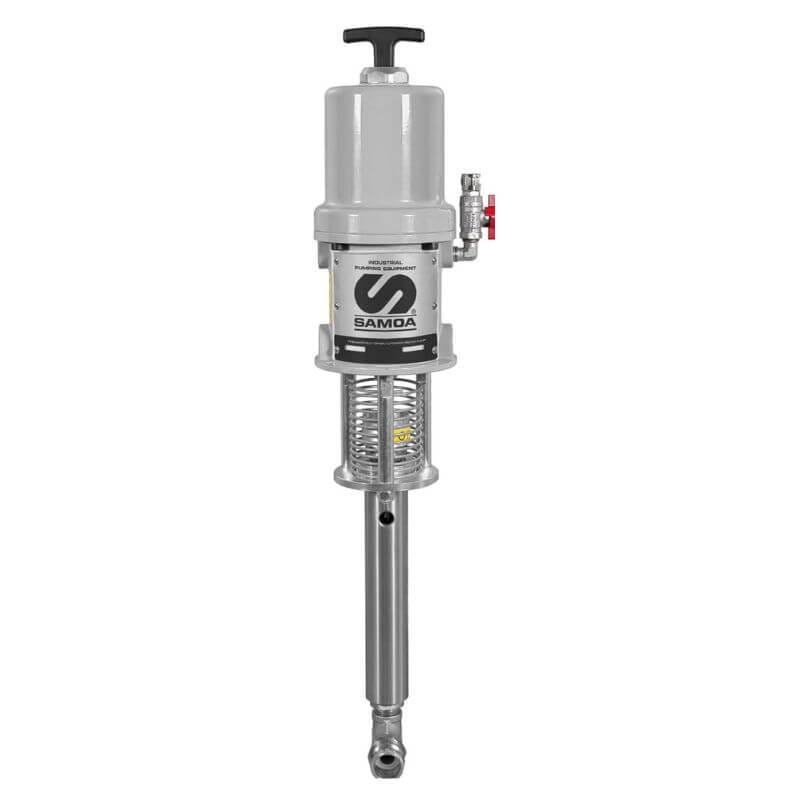

Vega 34:1 piston transfer pump divorced version

The proven performance of self-priming piston transfer pump allows accurate handling and transfer of a wide range of fluids, guaranteeing efficient operation, maximum productivity and the possibility of supplying multiple workstations simultaneously.

The Vega 34:1 pneumatic pump with its compact and robust structure, is available in stainless steel material to reach a long-lasting performance.

Advantages

  • Atex certified Ex II 2 G c IIB T6
  • Low starting pressure
  • Fast priming product flow
  • Adjustable material flow
  • High quality material gaskets
  • No product leakage
  • Low noise level
  • Less components and reduced maintenance
Request quote
Compare product Categories: , , Tags:
Subscribe to newsletter

Additional information

Max. flow rate at 60 cycles/ min

1,20 l/min
Air pressure range

3-8 bar / 40 -120 psi
Max. fluid outlet pressure

272 bar – 3.950 psi
Delivery per cycle

20 cc
Air consumption at 60 cycles / min

3 bar – 198 l/min
5 bar – 330 l/min
7 bar – 462 l/min
Air supply inlet

3/8" BSPP (F)
Material inlet

M36X2
Fluid outlet

3/8" BSPT (F)
Materiale pompante

Stainless steel AISI 303
Piston material

Stainless steel AISI 420 B
Seals material

PTFE + PE 1000
Effective motor diameter

Ø 3" – 75 mm
Air operated transfer pumps catalogue
  • Home and commercial appliance assembly
  • Automotive and aerospace assembly
  • Paint circulation
  • Bonding
  • Paper - cardboard processing
  • Leather processing
  • Woodworking
  • Metal working
  • Lubrication
  • Packaging
  • Coating and laminating
  • Flexographic printing
  • Chemicals products transferring
  • Adhesives
  • Glues
  • Detergents
  • Release agents
  • Lubricating greases
  • Inks
  • Lacquers
  • Mineral oils
  • Vegetable oils
  • Primer
  • Chemical products
  • Low viscosity resins
  • Tinctures
  • Water based paints
  • Solvent based paints
  • Air motor valve repair kit Code LA40401
  • Motor gasket kit Code LA40040
  • Pneumatic regulator kit Code LA40053
  • Air exhaust kit Code LA40042
  • 20 cc lower gaskets kit Code LA40046
  • Wall mounting bracket Code LA91200
  • Trolley Code LA96320
  • Air pressure regulator 3/8″ + air filter + metallic nut Code LA91107
  • Stainless steel high pressure regulator for recirculation 10 -210 bar Code LA7000
  • Stainless steel high pressure flow regulator, 30 – 210 bar for low viscosity products Code LA7030
  • Drum tripod h 550 mm Code LA3352/1
