Larius-Sirio-pompa-di-pompaggio-pneumatica-a-pistone

The proven performance of self-priming piston transfer pump allows accurate handling and transfer of a wide range of fluids, guaranteeing efficient operation, maximum productivity and the possibility of supplying multiple workstations simultaneously.

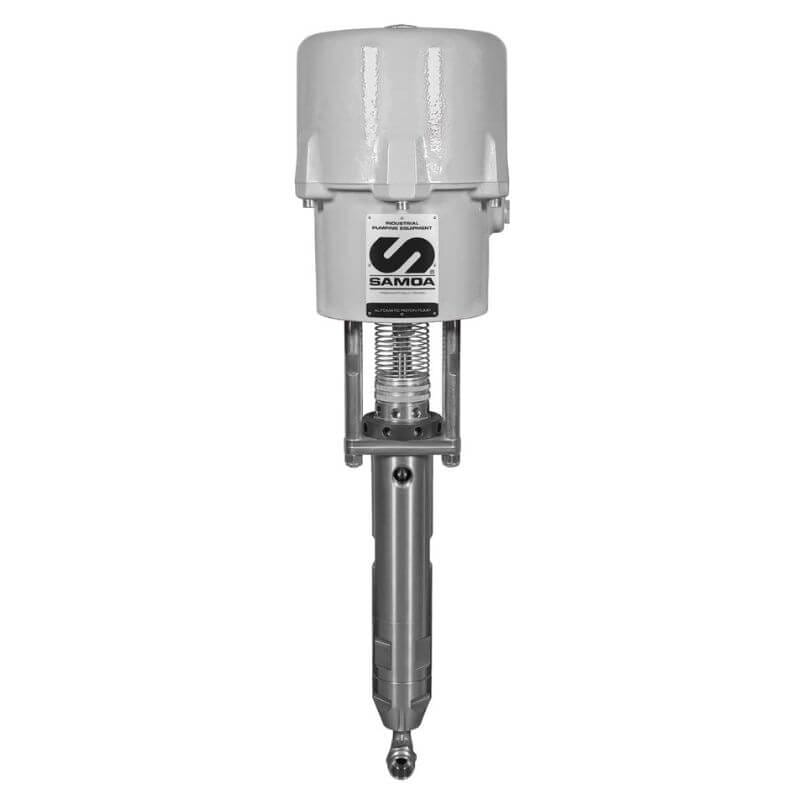

The Sirio 45:1 pneumatic pump with plunger piston with its solid structure is available in stainless steel material to reach a long-lasting performance.

Advantages

  • Atex certified Ex II 2 G c IIB T6
  • Low starting pressure
  • Fast priming product flow
  • Adjustable material flow
  • High quality material gaskets
  • No product leakage
  • Low noise level
  • Less components and reduced maintenance
Request quote
Compare product Categories: , Tags:
Subscribe to newsletter

Additional information

Max. flow rate at 60 cycles/ min

5,1 l/min
Air pressure range

3-7 bar / 40-100 psi
Max. fluid outlet pressure

315 bar – 4.568 psi
Delivery per cycle

85 cc
Air consumption at 60 cycles / min

3 bar – 760 l/min
5 bar – 1.260 l/min
7 bar – 1.760 l/min
Air supply inlet

3/4" BSPP (F)
Material inlet

M36X2 (M)
Fluid outlet

3/4" BSPP (F)
Materiale pompante

Stainless steel AISI 303
Piston material

Stainless steel AISI 420 B
Seals material

PTFE + PE 1000
Effective motor diameter

Ø 6 1/2" – 162 mm
Piston stroke

4" -100 mm
Air-operated transfer pumps catalogue
  • Home and commercial appliance assembly
  • Automotive and aerospace assembly
  • Paint circulation
  • Bonding
  • Paper - cardboard processing
  • Leather processing
  • Woodworking
  • Metal working
  • Lubrication
  • Packaging
  • Coating and laminating
  • Flexographic printing
  • Chemicals products transferring
  • Adhesives
  • Glues
  • Detergents
  • Release agents
  • Lubricating greases
  • Inks
  • Lacquers
  • Mineral oils
  • Vegetable oils
  • Primer
  • Chemical products
  • Low viscosity resins
  • Tinctures
  • Water based paints
  • Solvent based paints
  • Motor gasket kit Code LA40094
  • Pneumatic regulator kit Code LA40068
  • Air exhaust kit Code LA40095
  • 85 cc lower complete repair kit Code LA40093
  • Wall mounting bracket Code LA99157
  • Trolley Code LA99150
  • Air pressure regulator 3/4″ CodeLA99290
  • Stainless steel high pressure line filter Code LA99250/1
  • Stainless steel high pressure regulator for recirculation 10-210 bar Code LA7000
  • Stainless steel high pressure flow regulator 30-210 bar for low viscosiy products Code LA7030
