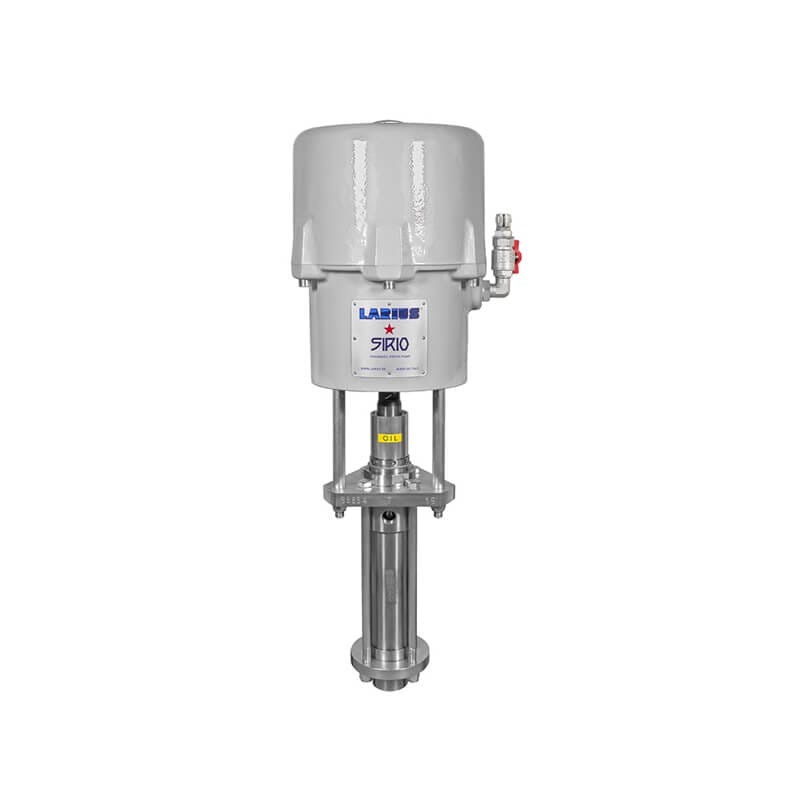

High performance extrusion package designed to maximize plant’s production capacity and to pump high viscosity products.

Advantages

▪ Atex certified Ex II 2 G Ex h IIB T6 Gb

▪ Direct suction from a wide range of drums

▪ Long lasting performance

▪ Easy to integrate in all manufacturing lines

▪ Quick container change over

▪ Reduced maintenance cost

Additional information

Max. delivery

6 l/min

Air pressure range

3-7 bar / 40-100 psi

Max. fluid outlet pressure

231 bar – 3.350 psi

Delivery per cycle

100 cc

Air consumption at 60 cycles / min

3 bar – 760 l/min
5 bar – 1.260 l/min
7 bar – 1.760 l/min

Air supply inlet

3/4″ BSPP (F)

Fluid outlet

1″ BSPP (F)

Materiale pompante

Stainless steel 420B – Acciaio al carbonio

Piston material

Stainless steel 420B

Seals material

PTFE + PE 1000

Effective motor diameter

Ø 6 1/2″ – 162 mm

Piston stroke

Ø 4″ – 100 mm

Max. temperatura d'esercizio

80 °C





  • Home and commercial appliance assembly
  • Automotive and aerospace assembly
  • Solar panels construction
  • Windows and doors manufacturing
  • Insulating glass supply
  • Mechanical Engineering
  • Electronic manufacturing
  • Acrylics
  • Adhesives
  • Bitumen
  • Glues
  • Sealing gels
  • Lubricating greases
  • Inks
  • Latex
  • Mastics
  • High solid product
  • Conductive and assembly pastes
  • Polyurethanes
  • Single or double components products
  • Epoxy resins
  • Sealants
  • Silicones
  • Urethanes
  • Reactive paints



▪ Sirio air motor valve repair kit Code LA40095

▪ 125 cc lower gasket kit Code LA96430

▪ Sirio motor gaskets kit Code LA40094

▪ Double post – Double acting power ram for – 30 l drum Code LA510090/5

▪ Double post – Double acting power ram for 200 l drum Code LA510000

▪ Single lip follower plate for 30 l drum Code LA510770

▪ Double hose seal follower plate for 200 l drum Code LA510100

▪ High flow regulator – 10 / 250 bar – Low viscosity products Code LA7130

▪ SS High flow regulator 30 / 210 bar – High viscosity products Code LA7040

▪ SS High flow regulator 30 / 110 bar – High viscosity products Code LA7040/2

▪ SS High flow regulator 30 / 70 bar – High viscosity products Code LA7040/3

▪ SS High flow regulator 10 – 320 bar – Viscosity products Code LA7050
