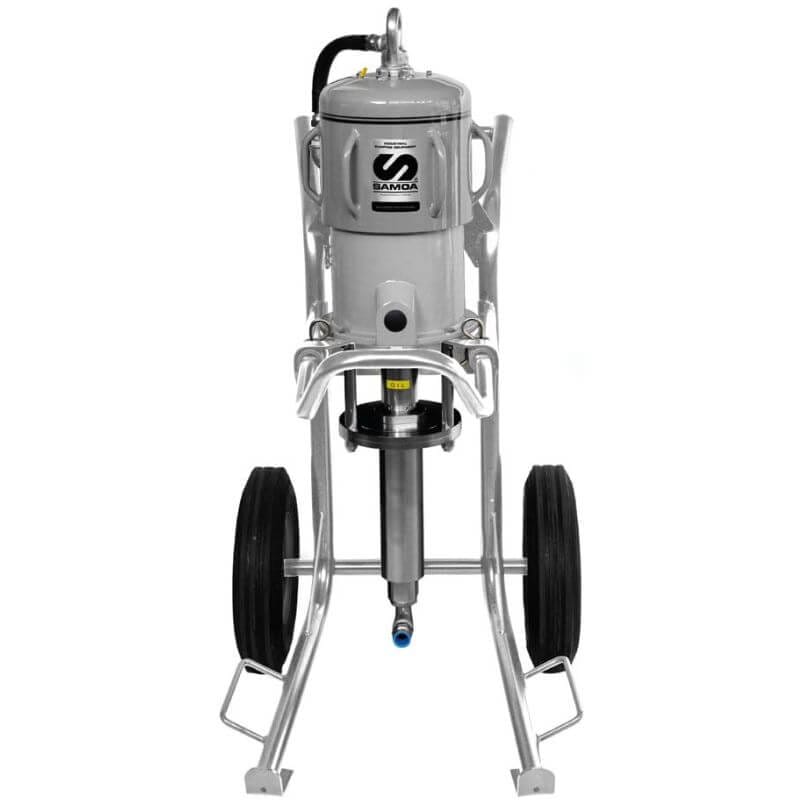

OMEGA 10:1 Stainless steel pneumatic airless wash pump

High-Pressure air-operated hydro cleaner.
Stainless steel high pressure wash pumps for use with pure water, solvent, degreasers or washing solutions. can be used with hot water until 90 ºc.
ATEX certified pumps, can be used in potentially hazardous environments.
Pumps include a well proven, reliable air valve with a design that assures a highly efficient cold dissipation for no icing, no stalling operation using long pump runs. Suitable for intensive cleaning.

Version: on trolley – on wall

Advantage

  • Atex certified pneumatic motor
  • Pumping in stainless stell material AISI 303 serie
  • Robust structure easy to install in all work area
  • Possible use with multiple guns
  • Easy to use and less maintenance
Request quote
Compare product Categories: ,
Subscribe to newsletter

Additional information

Pneumatic engine

7″x 4 3/4″
Max. delivery

32 l/min
Max. air pressure

7 bar – 100 psi
Max. fluid pressure

70 bar – 1.015 psi
Delivery per cycle

530 cc
Air supply inlet

1" BSPP (F)
Material inlet

1" BSPP (M)
Fluid outlet

3/8" BSPP (M)
SS nozzles sizes included

05 (10 l/min) – 075 (15,2 l/min) – 08 (16,1 l/min)

All package include: Stainless steel trolley and pumps with air pressure regulator, Hydro spray gun, ventilated lance 170 cm heat-protected handle, 3 stainless steel nozzles, suction system 200 l stainless steel hose Ø 3/8″ – 15 m.

Pneumatic wash pumps catalogue
  • Agriculture
  • Buildings and Roofs
  • Mining industry
  • Marine & Off-shore
  • Mechanical and industrial workshops
  • Oil & Gas
  • Hot water up 90°C
  • Cold water
  • Detergents
  • Chemical products
  • Degreasers
  • Solvents
  • Hydro spray gun 3/8″ BSPP fitting Code LA70001
  • Second gun kit – 3/8″ BSPP stainless steel connections Code LA65016
  • Ventilated lance70 cm with heat-protected handle Code LA70007
  • Ventilated lance70 120 cm with heat-protected handle Code LA70006
  • Ventilated lance70 170 cm with heat-protected handle Code LA70000
  • SS suction system 200 l – pump connection 1″ BSPP Code LA70150
  • Antistatic airless hose – Ø 3/8″ – 3/8″ BSPP fitting – 15 m – Max. pressure 345 bar Code LA18072/1
  • Aspiration hose for 30 l gravity – connection 1″ BSPP Code LA98245
  • Aspiration hose for 1000 l gravity – connection 1″ BSPP Code LA98246
  • Nipple to connect hose 3/8″ BSPP MM Code LA6149/2
  • SS line filter Code LA99250/2
  • SS nozzle size 02 – 4 l/min – angolo 40° – capacità 80 bar Code LA70010
  • SS nozzle size 03 – 6,1 l/min – angle 40° – capacity 80 bar Code LA70011
  • SS nozzle size 04 – 8,4 l/min – angle 40° – capacity 80 bar Code LA70012
  • SS nozzle size 05 – 10 l/min – angle 40° – capacity 80 bar Code LA70013
  • SS nozzle size 06 – 12,1 l/min – angle 40° – capacità 80 bar Code LA70014
  • SS nozzle size 065 – 13,2 l/min – angle 25° – capacity 80 bar Code LA70015
  • SS nozzle size 07 – 14,1 l/min – angle 40° – capacity 80 bar Code LA70016
  • SS nozzle size 075 – 15,2 l/min – angle 25° – capacity 80 bar Code LA70017
  • SS nozzle size 08 – 16,1 l/min – angle 40° – capacity 80 bar Code LA70018
  • SS nozzle size 09 – 18 l/min – angle 40° – capacity 80 bar Code LA70020
