The proven performance of self-priming piston transfer pump allows accurate handling and transfer of a wide range of fluids, guaranteeing efficient operation, maximum productivity and the possibility of supplying multiple workstations simultaneously.

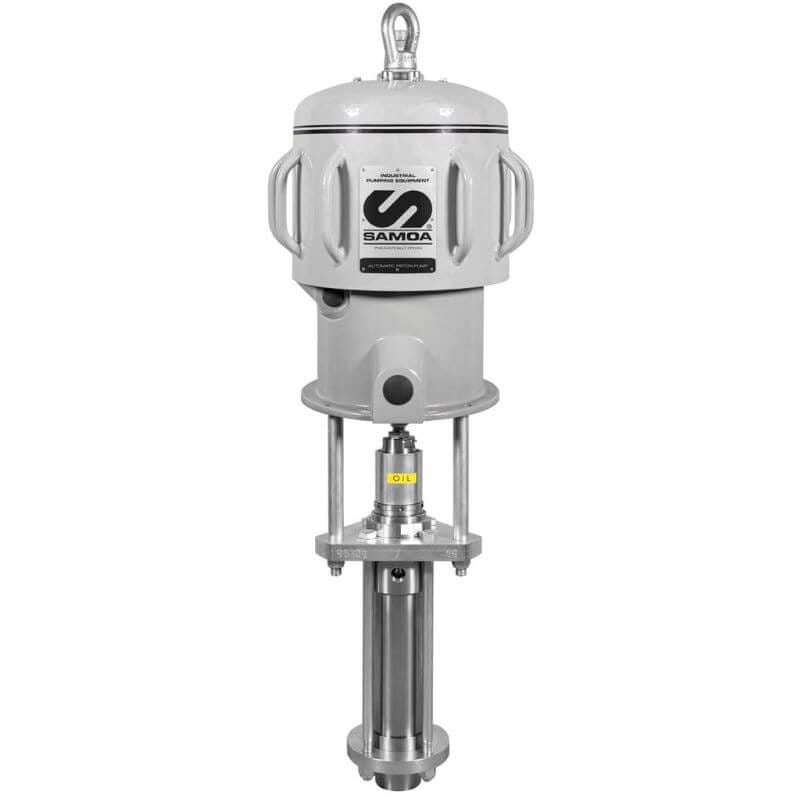

The Nova 20:1 pneumatic piston pump with its solid structure is available in stainless steel material to reach a long-lasting performance.

Advantages

  • certified Ex II 2 G c IIB T6
  • Low starting pressure
  • Fast priming product flow
  • Adjustable material flow
  • High quality material gaskets
  • No product leakage
  • Low noise level
  • Less components and reduced maintenance

Additional information

Max. flow rate at 60 cycles/ min

32 l/min

Air pressure range

3-8 bar / 40 -120 psi

Max. fluid outlet pressure

160 bar – 2.320 psi

Delivery per cycle

530 cc

Air consumption at 60 cycles / min

3 bar – 2.200 l/min
5 bar – 3.600 l/min
7 bar – 5.000 l/min

Air supply inlet
Material inelt

1 1/2" BSPP (F)

Fluid outlet

3/4″ BSPP (F)

Materiale pompante

Stainless steel AISI 303 – Copper

Piston material

Stainless steel AISI 420 B

Seals material

PTFE + PE 1000

Effective motor diameter

Ø 10″ – 250 mm

Piston stroke

Ø 4 3/4″ – 120 mm

  • Home and commercial appliance assembly
  • Automotive and aerospace assembly
  • Paint circulation
  • Bonding
  • Paper - cardboard processing
  • Leather processing
  • Woodworking
  • Metal working
  • Lubrication
  • Packaging
  • Coating and laminating
  • Flexographic printing
  • Chemicals products transferring
  • Adhesives
  • Glues
  • Detergents
  • Release agents
  • Lubricating greases
  • Inks
  • Lacquers
  • Mineral oils
  • Vegetable oils
  • Primer
  • Chemical products
  • Low viscosity resins
  • Tinctures
  • Water based paints
  • Solvent based paints
  • Motor gasket kit Code LA40065
  • Pneumatic regulator kit Code LA40069
  • Air exhaust valve kit Code LA40066
  • 530 cc lower complete repair kit Code LA40328
  • Wall mounting bracket kit Code LA65085
  • Trolley Code LA65380
  • Air pressure regulator + filter + lubrificator Code LA95350
