Low pressure flow regulators with a compact and functional design to deliver product constantly.
Code LA7190
Mechanical regulator – Viscosity products
Material: aluminum – Seat material: sintered carbide
Pressure range 0-14 bar – l/min delivery: 27 l/min
Max. fluid pressure inlet: 14 bar
Fluid inlet 3/8″ BSPP (F) – Fluid outlet 1/4″ BSPP (M)
Service kit: Code LA40403

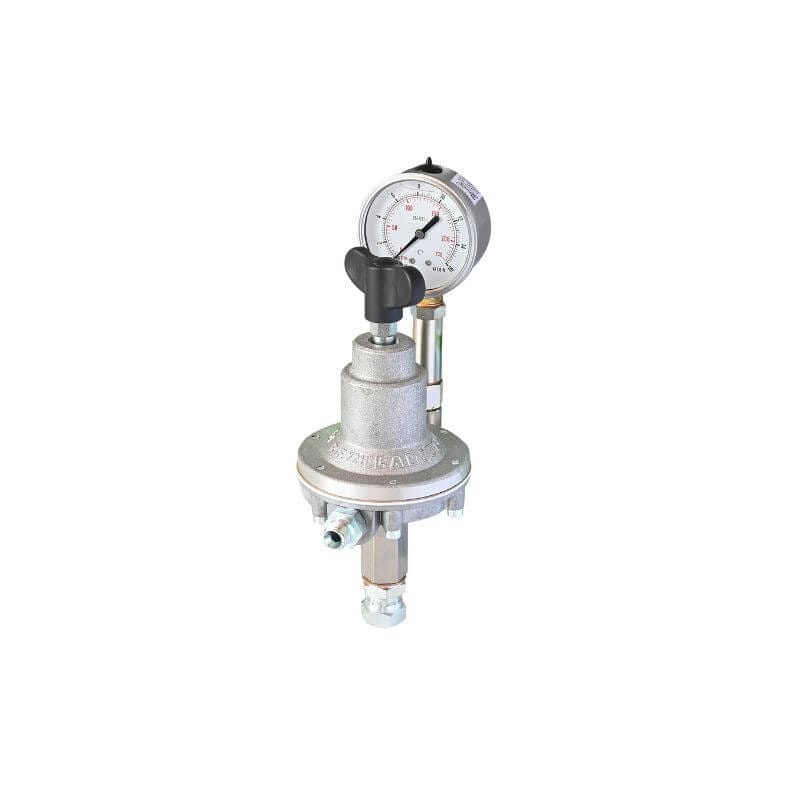

Code LA7204
Mechanical regulator – Viscosity products
Pressure gauge – PTFE diaphragm
Material: stainless steel – Seat material: sintered carbide
Pressure range 0-14 bar – l/min delivery: 27 l/min
Max. fluid pressure inlet: 20 bar
Fluid inlet 3/8″ BSPP (F) – Fluid outlet 1/4″ BSPP (M)
Service kit: Code LA40404
