The proven performance of self-priming piston transfer pump allows accurate handling and transfer of a wide range of fluids, guaranteeing efficient operation, maximum productivity and the possibility of supplying multiple workstations simultaneously.

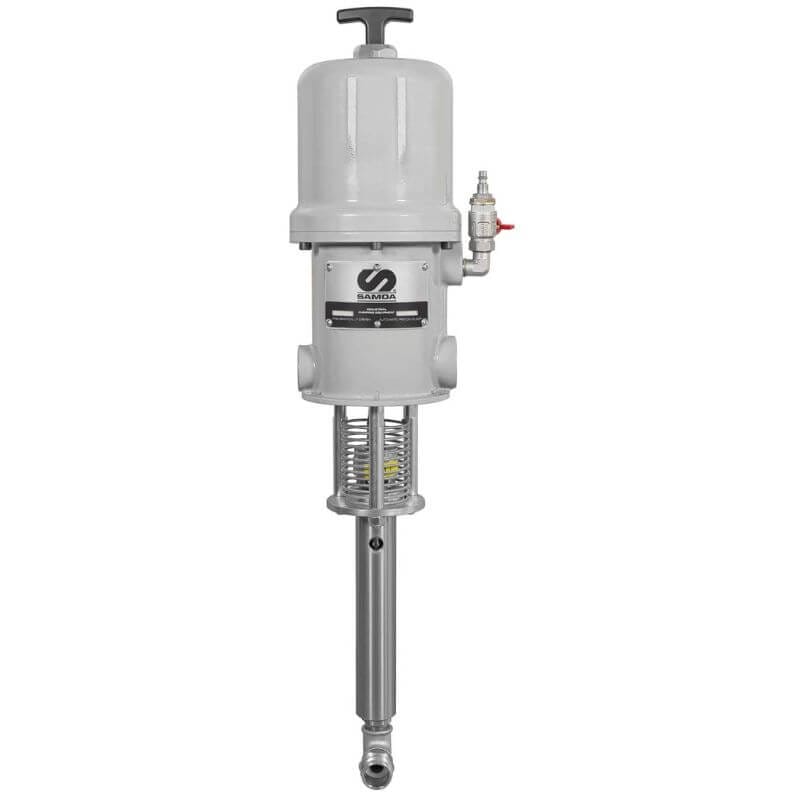

The Ghibli 30:1 pneumatic piston pump with its solid structure is available in carbon steel or stainless steel material to reach a long-lasting performance.

Advantages

  • Atex certified Ex II 2 G c IIB T6
  • Low starting pressure
  • Fast priming product flow
  • Adjustable material flow
  • High quality material gaskets
  • No product leakage
  • Low noise level
  • Less components and reduced maintenance

Additional information

Max. flow rate at 60 cycles/ min

3,6 l/min

Air pressure range

3-7 bar / 40-100 psi

Max. fluid outlet pressure

210 bar – 3.000 psi

Delivery per cycle

60 cc

Air consumption at 60 cycles / min

3 bar – 500 l/min
5 bar – 840 l/min
7 bar – 1200 l/min

Air supply inlet

3/8″ BSPP (F)

Material inelt

M36X2 (M)

Fluid outlet
Materiale pompante

Stainless steel AISI 303 / Acciaio al carbonio

Piston material

Stainless steel AISI 420 B

Seals material

PTFE + PE 1000

Effective motor diameter

4″ 1/4 – 108 mm

Piston stroke

4″ -100 mm

  • Home and commercial appliance assembly
  • Automotive and aerospace assembly
  • Paint circulation
  • Bonding
  • Paper - cardboard processing
  • Leather processing
  • Woodworking
  • Metal working
  • Lubrication
  • Packaging
  • Coating and laminating
  • Flexographic printing
  • Chemicals products transferring
  • Adhesives
  • Glues
  • Detergents
  • Release agents
  • Lubricating greases
  • Inks
  • Lacquers
  • Mineral oils
  • Vegetable oils
  • Primer
  • Chemical products
  • Low viscosity resins
  • Tinctures
  • Water based paints
  • Solvent based paints
  • Air motor valve repair kit Code LA40401
  • Motor gasket kit Code LA40050
  • Pneumatic regulator kit Code LA40051
  • Air exhaust kit Code LA40052
  • 60 cc lower PTFE gasket kit Code LA40055
  • Wall mounting bracket kit Code LA91200/1
  • Trolley Code LA96320
  • Air pressure regulator 3/8″ + air filter CodeLA91107
  • High pressure complete line filter 200 mesh LA96200
  • Stainless steel high pressure complete line filter 200 mesh Code LA98387
  • Stainless steel high pressure regulator for recirculation 10-210 bar Code LA7000
  • Stainless steel high pressure flow regulator 30-210 bar for low viscosiy products Code LA7030
