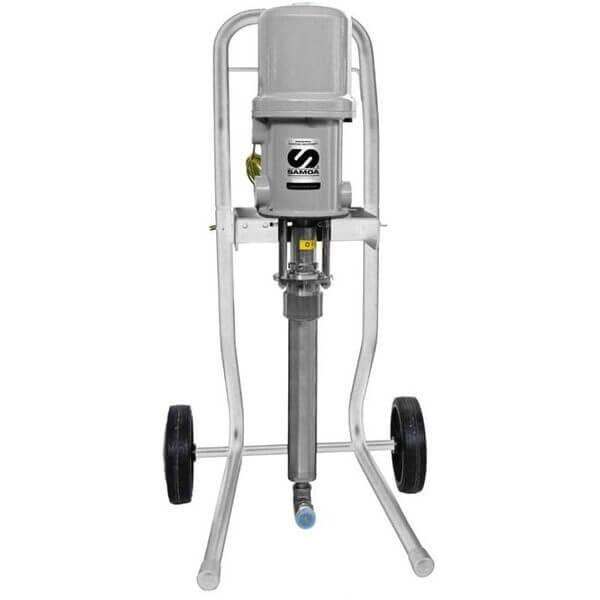

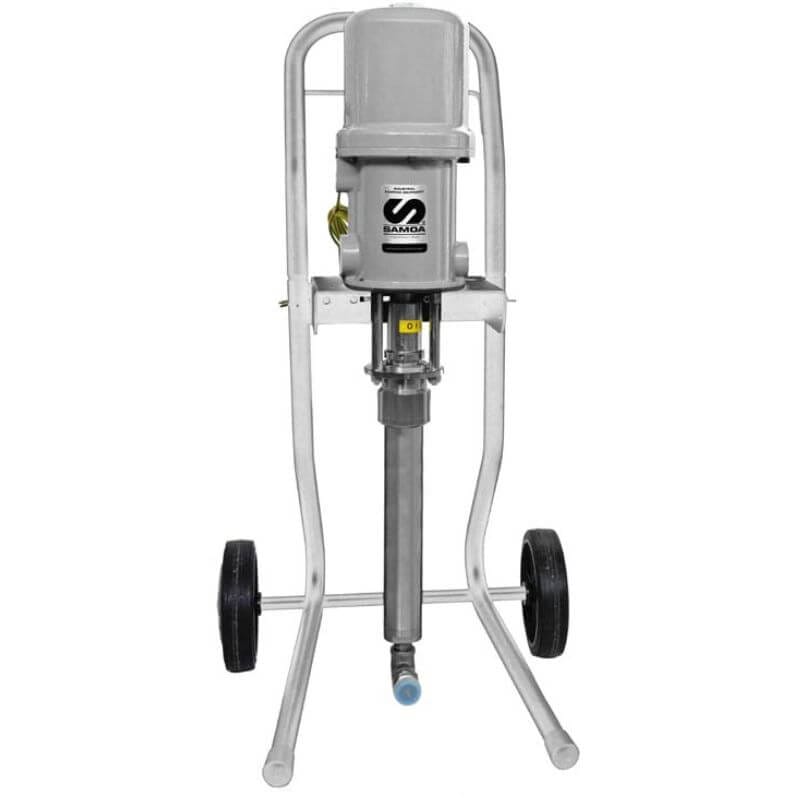

Ghibli 10:1 high-Pressure air-operated hydro cleaner.
Stainless steel airless wash pumps to use with pure water, solvent, degreasers or washing solutions. can be used with hot water until 90 ºC
ATEX certified pumps, can be used in potentially hazardous environments.
The pressure washer  includes a well proven, reliable air valve with a design that assures a highly efficient cold dissipation for no icing, no stalling operation using long pump runs. Suitable for intensive cleaning fro medium to heavy duty jobs.

 Ghibli 10:1 available versions:

  • On S.S trolley Code K70001
  • On wall Code K70008
  • 200 l drum Code K70009

Advantages

  • Atex certified pneumatic motor
  • Pumping and trolly in AISI 303 stainless stell
  • Robust structure easy to install in all work area
  • Possible use with multiple guns
  • Easy to use and less maintenance

Additional information

Pneumatic engine

4 1/4″x 4″

Max. delivery

12 l/min

Max. air pressure
Max. fluid pressure

70 bar – 1.015 psi

Delivery per cycle

200 cc

Air supply inlet

3/8″ BSPP (F)

Material inelt

1″ BSPP (M)

Fluid outlet

3/8″ BSPP (M)

SS nozzles sizes included

02 (4 l/min), 03 (6,1 l/min), 04 (8,4 l/min)

All package include: Stainless steel trolley and pumps with air pressure regulator, Hydro spray gun, ventilated lance 170 cm heat-protected handle, 3 stainless steel nozzles, suction system 200 l stainless steel hose Ø 3/8″ – 15 m.

  • Agriculture
  • Buildings and Roofs
  • Mining industry
  • Marine & Off-shore
  • Mechanical and industrial workshops
  • Oil & Gas
  • Hot water up 90°C
  • Cold water
  • Detergents
  • Chemical products
  • Degreasers
  • Solvents
  • Hydro spray gun 3/8″ BSPP fitting Code LA70001R
  • Second gun kit – 3/8″ BSPP stainless steel connections Code LA65016
  • Ventilated lance70 cm with heat-protected handle Code LA70007R
  • Ventilated lance70 120 cm with heat-protected handle Code LA70006R
  • Ventilated lance70 170 cm with heat-protected handle Code LA70000R
  • SS suction system 200 l – pump connection 1″ BSPP Code LA3350/1
  • Antistatic airless hose – Ø 3/8″ – 3/8″ BSPP fitting – 15 m – Max. pressure 345 bar Code LA18072/1
  • Aspiration hose for S.S 30 l gravity – connection 1″ BSPP Code LA98245
  • Aspiration hose for S.S 1000 l gravity – connection 1″ BSPP Code LA98246
  • SS line filter Code LA99250/2
  • SS nozzle size 02 – 4 l/min – angolo 40° – capacità 80 bar Code LA70010R
  • SS nozzle size 03 – 6,1 l/min – angle 40° – capacity 80 bar Code LA70011R
  • SS nozzle size 04 – 8,4 l/min – angle 40° – capacity 80 bar Code LA70012R
  • SS nozzle size 05 – 10 l/min – angle 40° – capacity 80 bar Code LA70013R
  • SS nozzle size 06 – 12,1 l/min – angle 40° – capacità 80 bar Code LA70014R
  • SS nozzle size 065 – 13,2 l/min – angle 25° – capacity 80 bar Code LA70015R
  • SS nozzle size 07 – 14,1 l/min – angle 40° – capacity 80 bar Code LA70016R
  • SS nozzle size 075 – 15,2 l/min – angle 25° – capacity 80 bar Code LA70017R
  • SS nozzle size 08 – 16,1 l/min – angle 40° – capacity 80 bar Code LA70018R
  • SS nozzle size 09 – 18 l/min – angle 40° – capacity 80 bar Code LA70020R
