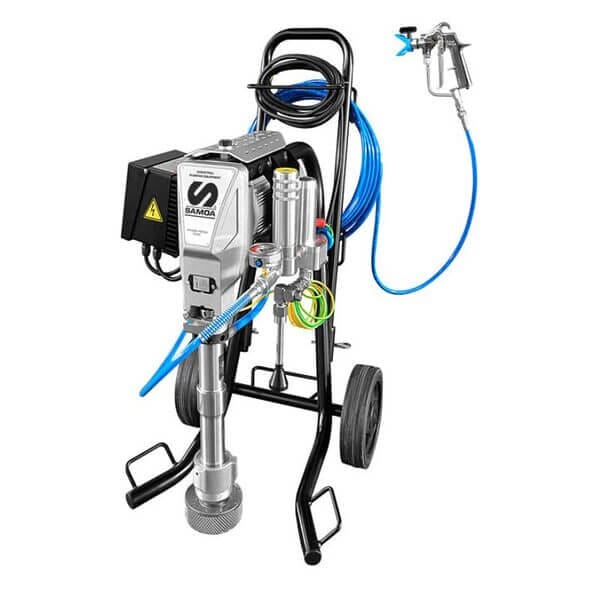

DRAGON airless electric piston sprayer

Performing electric high pressure piston sprayers for heavy duty job to ensure all airless painting advantages: perfect quality finish on large surface in less time to save material. The best paint thickness at the first past.

The L91X spray gun, light and ergonomic allows a consistent atomization of the product thanks to the Super Fast Clean airless nozzles with tungsten carbide structure and stainless steel gasket. There are a wide range of flexible and resistant airless hoses available in different lengths and different performing accessories to equipped your airless sprayer.

Advantages

  • Electric motor CC with permanent magnets
  • Electronic device to control and regulate the pressure of product
  • Consistent spray pattern
  • Spray from medium to highter coatings
  • Heavy duty performance
  • Reliable and resistant tempered piston pump
  • Easy operation, cleaning, maintenance



Request quote
Compare product Categories: , Tags:
Subscribe to newsletter

Additional information

Version

Trolley
Max. delivery

5 l/min
Max. working pressure

220 bar
Power engine

2,4 Kw
Voltage

110 VAC (60 Hz), 220 VAC (50 Hz)
Max. nozzle size

0,037″ Paint, 0,039″ Stucco
Min. power generator

5 Kw Monofase
Fluid outlet

3/8" NPT – NPSM
Sound pressure level

≤ 60 dB (A)
Weight

66 Kg
  • It does not have the line filter. It is available on request.
  • Spray kit includes: airless hose Ø 3/8″ NPT-NPSM – 15 m, L91X airless gun NPT-NPSM, airless nozzles SFC 25-40 / SFC 31-40
Electric airless piston spray pumps catalogue
  • External facades
  • Woodworking
  • Metal working
  • Building maintenance
  • Internal walls
  • Residential - industrial projects
  • Explosion protection
  • Protective coatings
  • Acrylics
  • Anti-rust
  • Bitumen
  • Emulsions
  • Glossy finishes
  • Base coat
  • Fireproof
  • Waterproofing
  • Impregnating agents
  • Plasters
  • Insulators
  • Latex
  • Primer
  • Water / Solvent based products
  • Smoothers paints
  • Epoxy resins
  • Flame retardants
  • Enamels
  • Plaster
  • Temperas
  • Oil paints
  • L91x airless manual gun 1/4″ NPT – NPSM – 500 bar Code LA11134
  • Double outlet kit for two guns Code LA20176/1
  • Manual airless gun extension 30 cm fitting 1/4″ BSPP Code LA153
  • Manual airless gun extension 40 cm fitting 1/4″ BSPP Code LA154
  • Manual airless gun extension 60 cm fitting 1/4″ BSPP Code LA155
  • Manual airless gun extension 80 cm fitting 1/4″ BSPP Code LA158
  • Manual airless gun extension 100 cm fitting 1/4″ BSPP Code LA156
  • PLA airless manual spray gun fitting 1/4″ BSPP – 250 bar – 130 cm LAK11420
  • PLA airless manual spray gun fitting 1/4″ BSPP – 250 bar – 180 cm Code LAK11420
  • PLA airless manual spray gun fitting 1/4″ BSPP – 250 bar – 240 cm Code LAK11420
  • PLA airless manual spray gun fitting 1/4″ BSPP – 450 bar – 130 cm Code LAK11436
  • PLA airless manual spray gun fitting 1/4″ BSPP – 450 bar – 180 cm Code LAK11441
  • PLA airless manual spray gun fitting 1/4″ BSPP – 450 bar – 240 cm Code LAK11446
  • Airless hose Ø 1/4″ fitting NPT-NPSM – 1,5 m – 230 bar Code LAHSB25053
  • Airless hose Ø 1/4″ fitting NPT-NPSM – 15 m –  230 bar Code LAHSB25503
  • Airless hose Ø 1/4″ fitting NPT-NPSM – 20 m –   230 bar Code LAHSB25603
  • Nipple to joint Ø 1/4″ fitting NPT-NPSM hose Code LA3281
  • Airless hose Ø 3/8″ raccordo NPT – NPSM – 15 m –  230 bar Code LAHSB38503
  • Airless hose Ø 3/8″ raccordo NPT – NPSM – 20 m –  230 bar Code LAHSB38603
  • Nipple to joint Ø 1/4″ fitting NPT-NPSM hose Code LA19652
  • Super Fast Clean airless nozzle from 11-20 to 51-80 Code LASFC
  • Top Spraying Clean airless nozzle from 7-10 to 31-60 Code LATSC
  • Spray airless gun butt filters 200 mesh – 25 unità Code LA11019/25
  • Spray airless gun butt filters 100 mesh – 25 unità Code LA11037/25
  • Spray airless gun butt filters 60 mesh – 25 unità Code LA11038/25
  • Spray airless gun butt filters 30 mesh – 25 unità Code LA11039/25
  • Heater Code LA6099Foot valve kit Code LA30170
  • Upper and lower seals kit Code 35081
  • Complete long piston seals Code 30173
  • Sleeve and piston kit Code 30174
  • Completelong lower Code LA30100
  • Complete long lower repair kit Code LA40108
