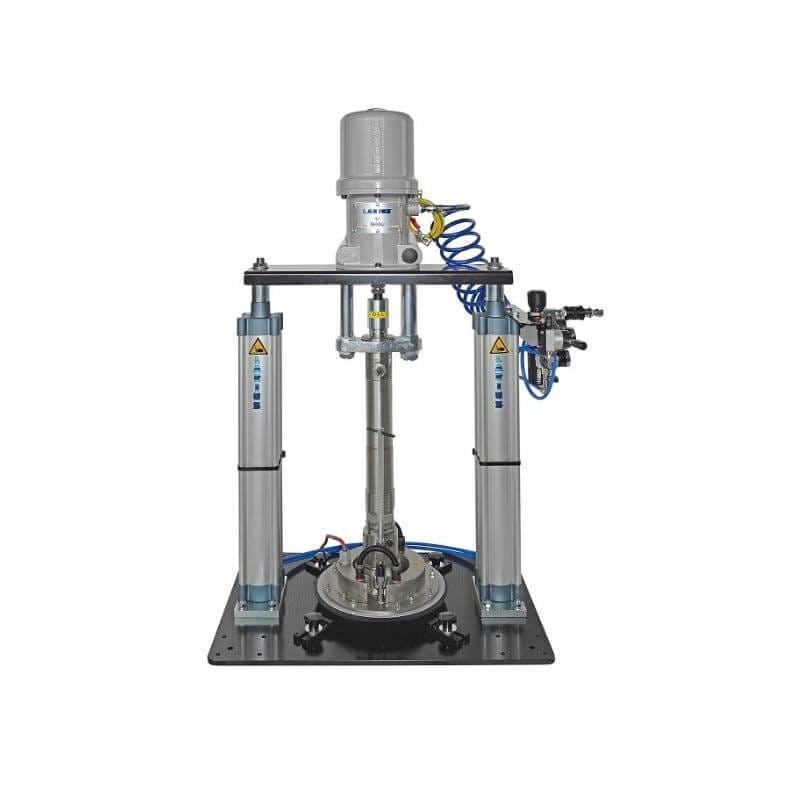

Extrusion rams include a FRL unit for air supply control, pump bracket and pump mounting accessories.
Before using maximum downward pressure check the drum maximum pressure.
Code LA510090
Double post – 30 l drum
Air inlet: 3/8″ BSPP (F) – Air post section: 80 mm
H min.: 760 mm – H max.: 1.260 mm
Pumps: Vega 13:1 -Vega 45:1 – Ghibli 26:1
Code LA510090/1
Double post – 30 l drum
Air inlet: 3/8″ BSPP (F) – Air post section: 80 mm
H min.: 700 mm – H max: 1.200 mm
Pumps:Omega 28:1 – Omega 40:1 – Nova 20:1 – Nova 55:1
Read more
Code LA510090/5
Double post – 30 l drum
Air inlet: 3/8″ BSPP (F) – Air post section: 80 mm
H min: 760 mm – H max: 1.200 mm
Pumps:Sirio 22:1 – Sirio 33:1 – Sirio 60:1
Code LA510000/1
Double post – 200 l drum
Air inlet: 1″ BSPP (F) – Air post section: 100 mm
H min.: 1.560 mm – H max: 2.660 mm
Pumps: Omega 28:1 – Omega 40:1 – Nova 20:1 – Nova 55:1
Code LA510000/2
Double post – 200 l drum
Air inlet: 1″ BSPP (F) – Air post section: 100 mm
H min.: 1.560 mm – H max: 2.660 mm
Pumps: Sirio 22:1 – Sirio 33:1 – Sirio 60:1
Code LA510000/3
Double post – 200 l drum
Air inlet: 1″ BSPP (F) – Air post section: 100 mm
H min.: 1.560 mm – H max: 2.660 mm
Pumps: Sirio 22:1 – Sirio 33:1 – Sirio 60:1
